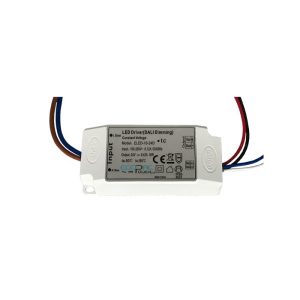

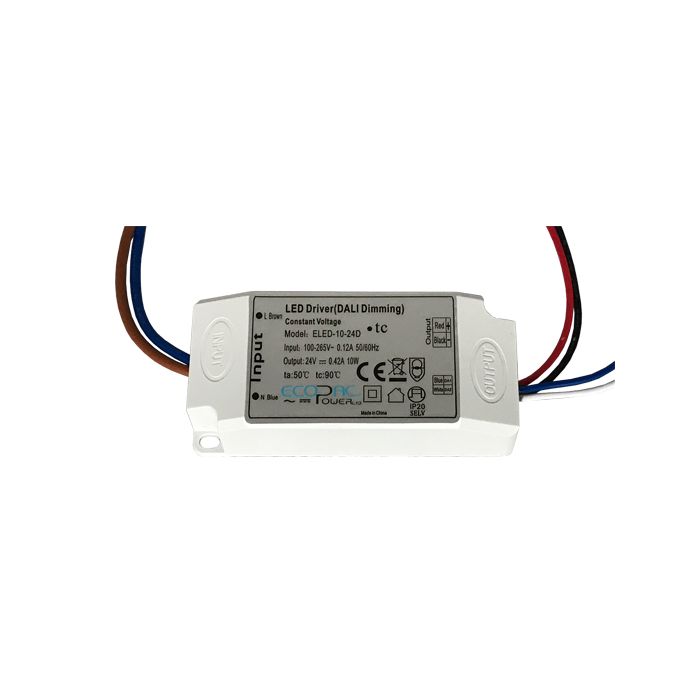

ELED-10-24D – ECOPAC LED DRIVER ELED-10-24D SERIES 10W 24V obsolete no longer available For Discount
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Built-in active PFC function
Dali Dimmable
Protections: Short circuit Over Current Over Loading
Other features:
IP20 Design for Indoor Installations
Dimming function : Built-in Dali interface push dimming
Suitable for intelligent LED lighting
Suitable for dry locations
3 years warranty
More Information
Manufacturer
Ecopac Power
Output Voltage
24
Dimensions
80x 36x 23
EMC Standards
Compliance to EN55015, EN61000-3-2-3 (>50% load) Compliance to EN61000-4-2,3,4,5,6,11(surge 4KV)
Input Voltage
100-265VAC
Safety Standards
EN61347-1, EN61347-2-13
Output Voltage Options
Single
Working Temperature
-40~+60°C
PDF Datasheet
ELED-10-D UP.pdf
