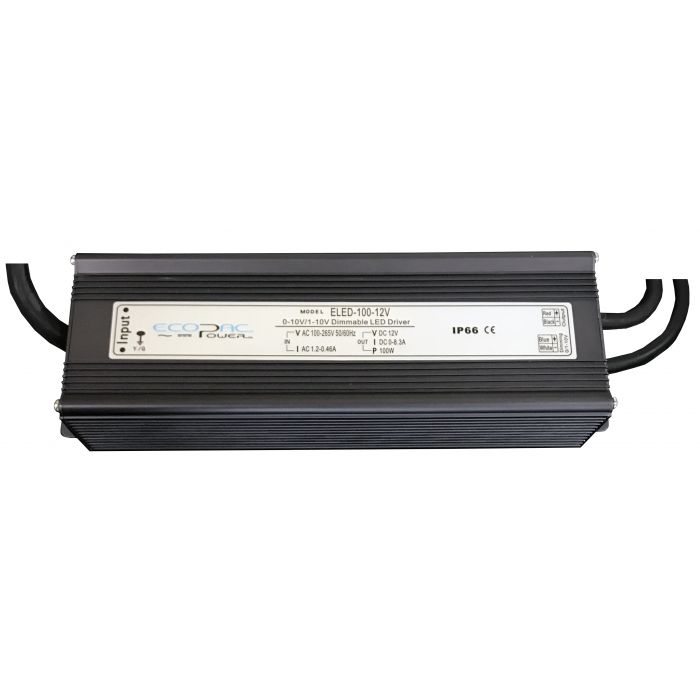

ELED-100-12V – Ecopac ELED-100-12V 1-10V Dimming LED Driver 100W 12V For Discount
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Constant Voltage Design
0-10V Dimmable
Protections: Short circuit Over Voltage Overload
Other features:
Universal AC input Full range
IP66 design for indoor or outdoor installations
Built-in PFC function
Cooling by free air convection
Over 83% efficiency
3 years warranty
More Information
Manufacturer
Ecopac Power
Output Wattage (W)
100
Output Voltage
12V
Dimmable (Type)
0-10V
Dimensions
230x 68.5x 44
EMC Standards
Compliance to EN55015, EN61000-3-2 (>50% load) Compliance to EN61000-4-2,3,4,5,6,11 EN61547 A light industry level
Input Voltage
100-265VAC
Safety Standards
EN61347-2-13, IP66
Output Voltage Options
Single
Working Temperature
-40~+60°C
PDF Datasheet
ELED-100 0~10V Series.pdf
