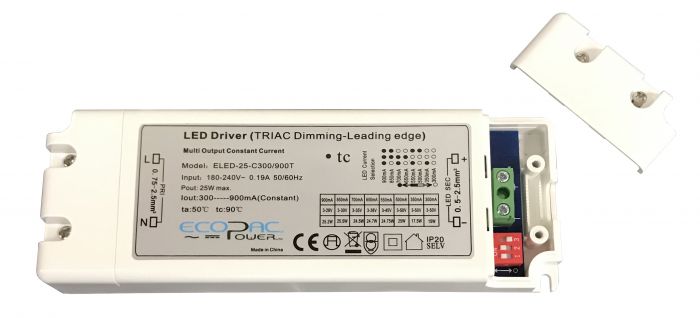

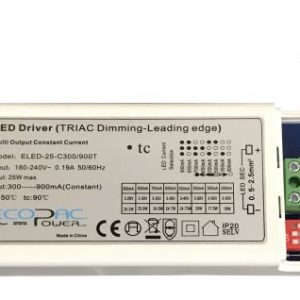

ELED-25-C300 900T – ECOPAC Constant Current LED Driver ELED-25-C300 900T For Sale
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Constant current mode output
Multiple levels selectable by dip switch
Protections: Short circuit Over load Over Current
Other features:
Full protection housing east installation
IP20 design for indoor installation
Cooling by free air convection
Dimming function : Triac dimmable phase cut dimmable
3 years warranty
More Information
Manufacturer
Ecopac Power
Output Wattage (W)
25
Output Current
Choose Option
Dimmable (Type)
Triac Leading edge & Trailing edge
DC Output Adjustment
300-900mA
Dimensions
155x 54x 20
EMC Standards
Compliance to EN61000-4,2,3,4,5,6,11, EN61547, A light industry level ( surge 4KV )
Input Voltage
180-240VAC
Safety Standards
EN61347-1, EN61347-2-13
Output Voltage Options
Single
Working Temperature
Tcase= -40~+60°C
PDF Datasheet
ELED-25-CT.pdf
