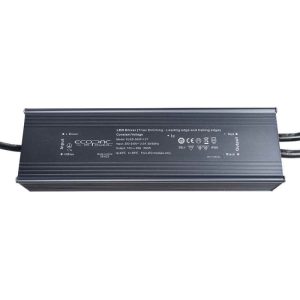

ELED-300P-24T – Ecopac ELED-300P-24T Premium Triac Dimmable LED Driver – 300W 24V Online Hot Sale

24V Constant Voltage Design
Works with Leading edge and Trailing edge Triac dimmers
PWM Output
Protections: Short circuit Over Loading Over Current
Other features:

AC input 180-250VAC
Cooling by free air convection
89% efficiency
3 years warranty
IP66 Rated
More Information

Manufacturer
Ecopac Power

Output Wattage (W)
300

Output Voltage
24V

Dimmable (Type)
Triac Leading edge & Trailing edge

Dimensions
276x 78x 47

EMC Standards
Compliance to EN55015, EN61000-3-2 (>60% load) Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, A light industry level (surge 4KV) Criteria A

Input Voltage
180-240VAC

Safety Standards
EN61347-1, EN61347-2-13

Output Voltage Options
Single

Working Temperature
-40~+60°C

PDF Datasheet
ELED-300P-T.pdf
