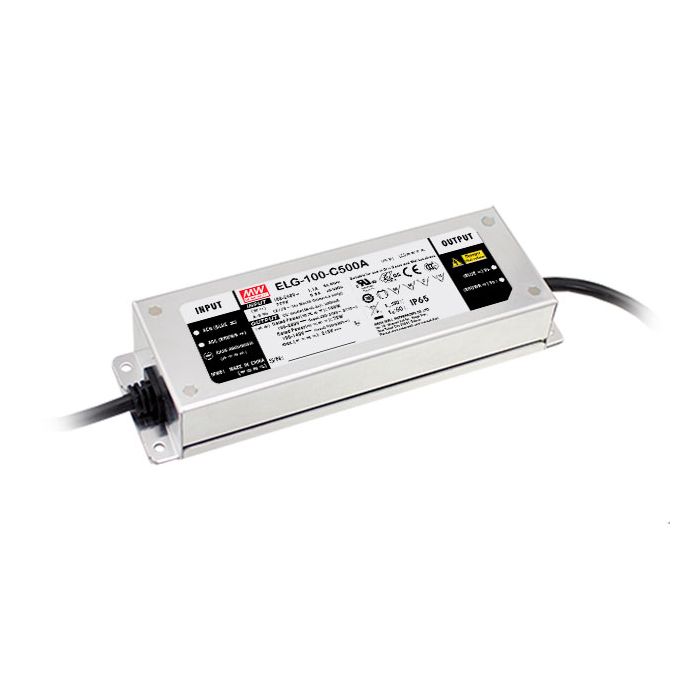

ELG-100-C-S – Mean Well ELG-100-C Series LED Driver 99.75-100.8W 350-1400mA Online
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Constant current mode output
Typical lifetime>50000 hours
Protections: Short circuit Over Voltage Over temperature
Other features:
Built-in active PFC function
No load power consumption <0.5W
IP67 IP65 rated design for indoor or outdoor installations
Metal housing design
5 years warranty
More Information
Manufacturer
Mean Well
Output Wattage (W)
100
Dimmable (Type)
3 in 1 Dimming
Dimensions
199x 63x 35.5
EMC Standards
Compliance to EN55015, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level (surge immunity Line-Easrt 6KV, Line-Line 4KV)
Input Voltage
100-305VAC 142-431VDC
Safety Standards
UL8750 (type”HL”); CSA C22.2 No. 250 13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; IP65 or IP67 approved
Output Voltage Options
Single
Working Temperature
Tcase= -40~+90°C (Refer to OUTPUT LOAD vs TEMPERATURE )
PDF Datasheet
elg-100.pdf
