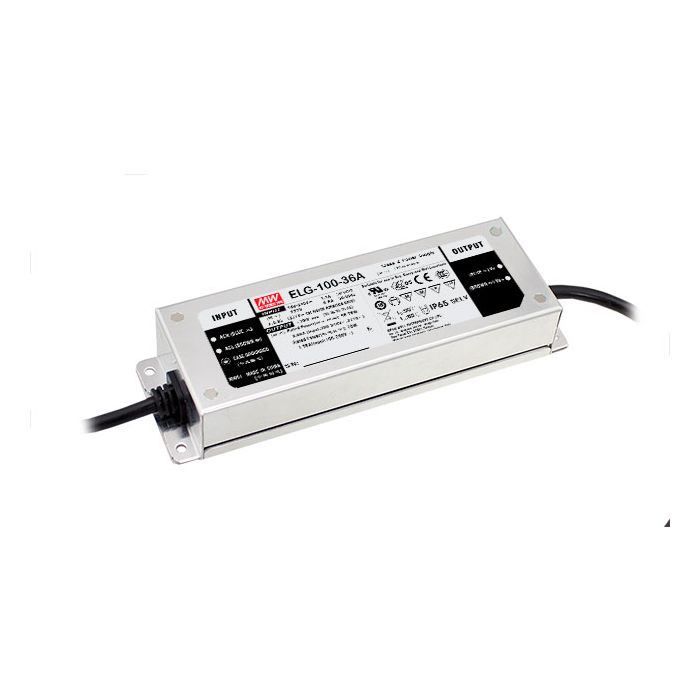

ELG-100-S – Mean Well ELG-100 Series LED Driver 95.6-96.12W 24-54V Hot on Sale

Constant current mode output
Typical lifetime>50000 hours
Protections: Short circuit Over Voltage Over temperature
Other features:

Built-in active PFC function
No load power consumption <0.5W
IP67 IP65 rated design for indoor or outdoor installations
Metal housing design
Various Dimming options
5 years warranty
More Information

Manufacturer

Mean Well

Output Wattage (W)

96

Dimensions

199x 63x 35.5

EMC Standards

Compliance to EN55015, EN61000-3-2 Class C (>50% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level (surge immunity Line-Easrt 6KV, Line-Line 4KV)

Input Voltage

100-305VAC 142-431VDC

Safety Standards

UL8750 (type”HL”); CSA C22.2 No. 250 13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; IP65 or IP67 approved

Output Voltage Options

Single

Working Temperature

Tcase= -40~+85°C (Refer to Derating Curve )

PDF Datasheet

ELG-100-SPEC.pdf
