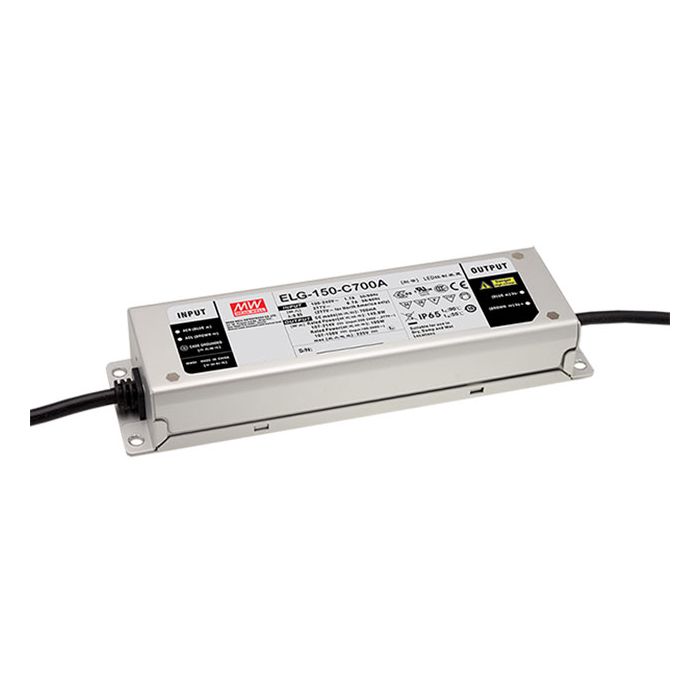

ELG-150-C-S – Mean Well ELG-150-C Series LED Driver 149.8-151.2W 500-2100mA Hot on Sale

Constant current mode outputTypical lifetime>50000 hoursProtections: Short circuit Over Voltage Over temperatureOther features:Built-in active PFC functionNo load power consumption <0.5WIP67 IP65 rated design for indoor or outdoor installationsMetal housing design3 in 1 dimming5 years warranty
More Information

Manufacturer

Mean Well

Output Wattage (W)

150

Output Current

Choose Option

Dimmable (Type)

3 in 1 Dimming

Dimensions

219x 63x 35.5

EMC Standards

Compliance to EN55015, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level (surge immunity Line-Easrt 6KV, Line-Line 4KV)

Input Voltage

100-305VAC 142-431VDC

Safety Standards

UL8750 (type”HL”); CSA C22.2 No. 250 13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; IP65 or IP67 approved

Output Voltage Options

Single

Working Temperature

Tcase= -40~+85°C (Refer to OUTPUT LOAD vs TEMPERATURE )

PDF Datasheet

elg-100.pdf
