ELXc 242.837 Art# 188643 Vossloh Schwabe on Sale

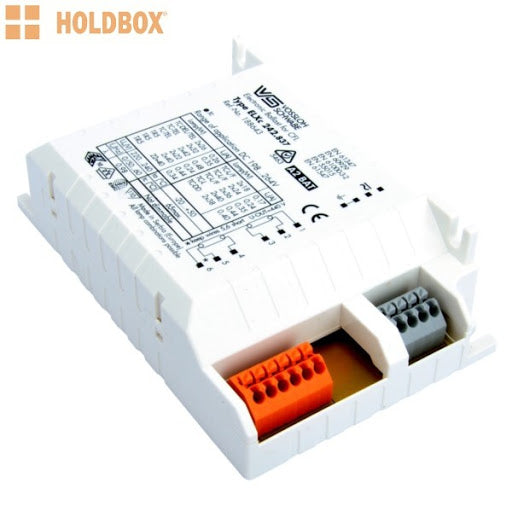

Electronic ballast for compact fluorescent lamps.

Ballasts, electronic ELXc 242.837 2x18W 42W TC F L TC dEL tEL TC dD T R5 188643 4050732049330

Electronic ballast
Casing: heat-resistant polyamide
DC voltage for operation: 176–264V, for ignition: 198–264V (ELXc 242.837: DC voltage cannot be reduced to 176V)
Power factor: > 0.96 (K1: 0.9)
Push-in terminals with push-button: 0.5–1.5 mm2
RFI-suppressed
Constant power consumption
For luminaires of protection class I
Degree of protection: IP20
Fixing brackets for screws M4 for lateral or base mounting
For lighting systems with high switching frequency ( > 5 day)
EOL shut down approved acc. to EN 61347 Test 2

Lamp type: TC-F -L, TC-DEL -TEL, TC-DD, T-R5
Output [W]: 2×18, 2×24, 2×36, 2×40 for compact fluorescent lamps TC-F -L (2G10 2G11)
Output [W]: 2×22, 2×40 for compact fluorescent lamps T-R5 (2GX13)
Output [W]: 2×26, 2×32, 2×42 for compact fluorescent lamps TC-DEL -TEL (G24q-3 GX24q-3)
Output [W]: 2×38 for compact fluorescent lamps TC-DD (GR10q)
Lamp number: 2
Voltage AC [V]: 220-240V
Frequency [Hz]: 50-60 Hz
Ambient temperature (°C) -20 to 50

Twin Elelctronic ballast , multiple  lamps

2* 26 ,2* 32  2* 42 PLC PLT

2* 22T5 Circular  2 * 40T5 Circuluar

2 * 18 PLL PLF

2* 40PLL

2 * 38DD
