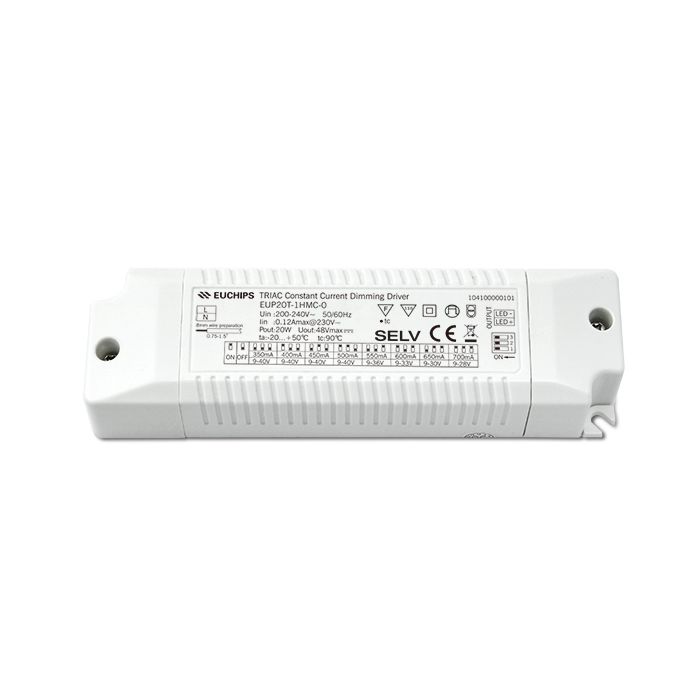

EUP20T-1HMC-0 – EUCHIPS Triac Dimmable Selectable Constant Current LED Driver 350mA-700mA 20W For Discount

Constant current, traic dimmable LED driver, output current level selectable by DIP S.W.

Support Leading edge (Triac) and Trailing edge (ELV) dimmer
Dimming range from 40VAC to 240VAC
Built-in active PFC function Class 2 power supply. Full protective plastic housing
Dimming effect smooth, no flicker Protections:
Short circuit, over load, over temperature
Suitable for indoor LED lighting application, such as down light, spotlights, panel light, and so on
More Information

Manufacturer
EUCHIPS

Output Wattage (W)
12

Output Current
Selectable

Dimmable (Type)
Triac Leading edge & Trailing edge

Output Voltage Range (V)
9-40VDC

DC Output Adjustment
Selectable

Dimensions
150 x 43 x 29 mm

Input Voltage
220-240VAC

Output Voltage Options
Single

Working Temperature
-20 ~ +50C

PDF Datasheet
EUP20T-1HMC-0 New.pdf
