FLS-42-1050 LD ADV Selectable Constant Current LED Driver Online
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200

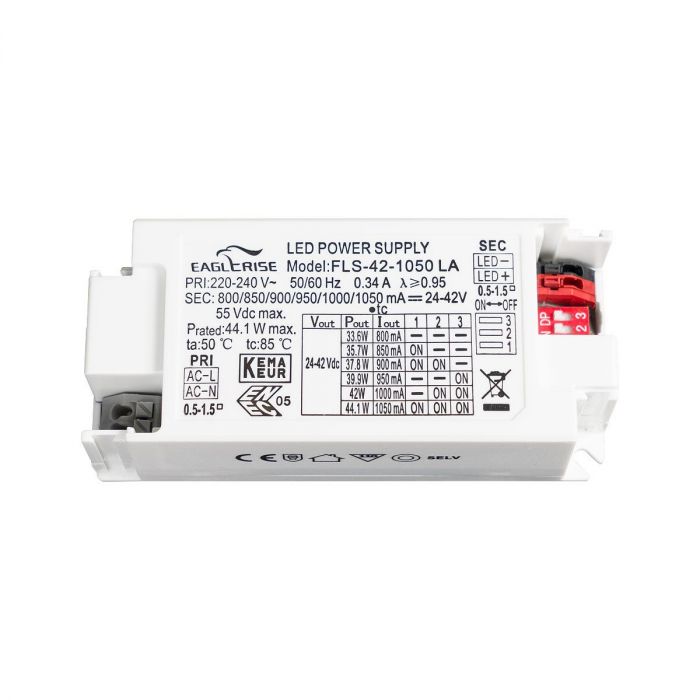

The Eaglerise FLS-42-1050 Selectable Constant Current LED Driver features selectable output current via dip switches between 800mA ~ 1050mA. Suplied with 5year warranty.
Features
Protections: short circuit over load over voltage
IP20 Rated
Flicker Free
Power Factor ?0.95
Efficiency ?86%
Class II, SELV
Current adjustment by Dip switch
5 years warranty
More Information
Manufacturer
Eaglerise
Output Wattage (W)
40
Output Current
Selectable
Dimmable (Type)
No
Output Voltage Range (V)
24-42VDC
DC Output Adjustment
No
Dimensions
97 x 43 x 30 mm
EMC Standards
EN55015; EN61000-3-2 Class C; EN61000-3-3, EN 61547;EN 61000-4-2, Performance Criteria B; EN 61000-4-5, 1000V Performance Criteria C
Input Voltage
220-240VAC
Safety Standards
EN 61347-1; EN61347-2-13
Output Voltage Options
Single
Working Temperature
-20 ~ +50C
PDF Datasheet
FLS-42-1050.pdf
