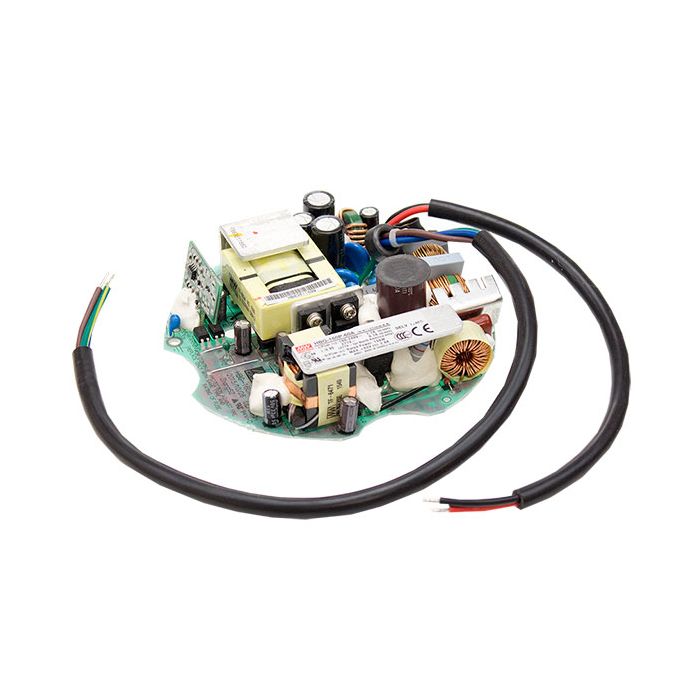

HBG-160-S – Mean Well HBG-160 Series LED Driver 156W – 158W 24V – 60V Hot on Sale

IP67 design for indoor or outdoor installationsBuilt-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)5 years warrantyProtections: Short circuit Over current Over voltage Over temperatureOther features:Universal AC input (up to 305VAC) Full rangeBuilt-in active PFC, PF>0.9 for 60% of load or higherHigh efficiency up to 93.5%Output current adjustable through output cable or internal potentiometerCooling by free air convectionSuitable for dry, damp and wet locationSuitable for LED lighting and street lighting applicationsMeet 4KV surge immunity level (IEC61000-4-5)Class 2 power unit
More Information

Output Wattage (W)

156

Output Voltage

Choose Option

Dimensions

132x 132x 66.5

EMC Standards

EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV). criteria A

Input Voltage

90~305VAC, 127~431VDC

Safety Standards

UL8750, EN61347-2-13

Output Voltage Options

Single

Working Temperature

-40~+70°C (refer to output derating curve)

PDF Datasheet

HBG-160-spec_10.pdf
