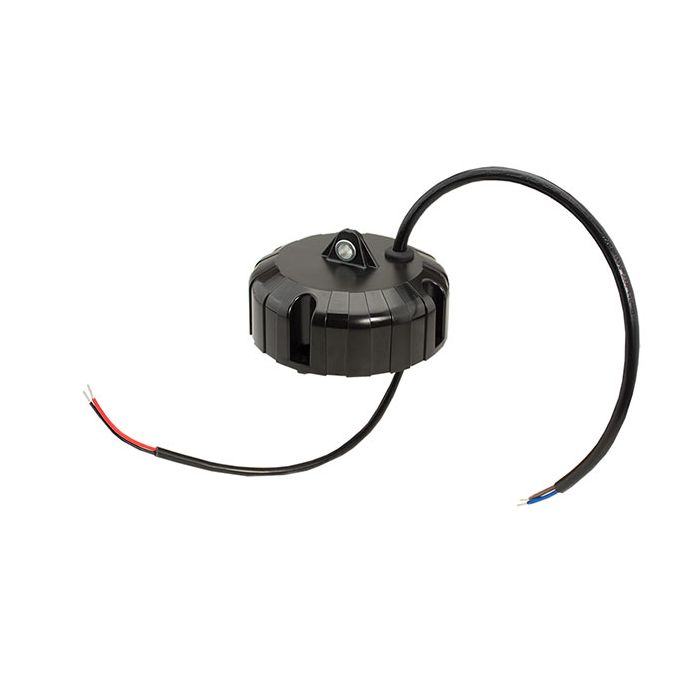

HBG-60-2100 – Mean Well Power Supply HBG-60-2100 Series 60.9W 35V Sale
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Constant current design5 years warrantyProtections: Short circuit Over temperatureOther features:Universal AC input Full range (up to 295VAC)Built-in active PFC function High efficiency up to 91%Cooling by free air convectionFully isolated plastic caseClass II power unit, no FGClass 2 power unitNo load power consumption <0.5W
More Information
Manufacturer
Mean Well
Output Wattage (W)
60
Output Current
2100mA
Dimmable (Type)
No
Output Voltage Range (V)
19~29
DC Output Adjustment
19-29V
Dimensions
100x 60.5
EMC Standards
Compliance to EN55015, EN61000-3-2 Class C (>65% load) ; EN61000-3-3, Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (Surge 2KV), criteria A
Input Voltage
90-295VAC
Safety Standards
UL8750,CSA C22.2 No. 250. 13-12, ENEC EN61347-1 & EN61347-2-13 independent, EN62384 approved
Output Voltage Options
Single
Working Temperature
-40°C-+80°C
PDF Datasheet
HBG-60-spec.pdf
