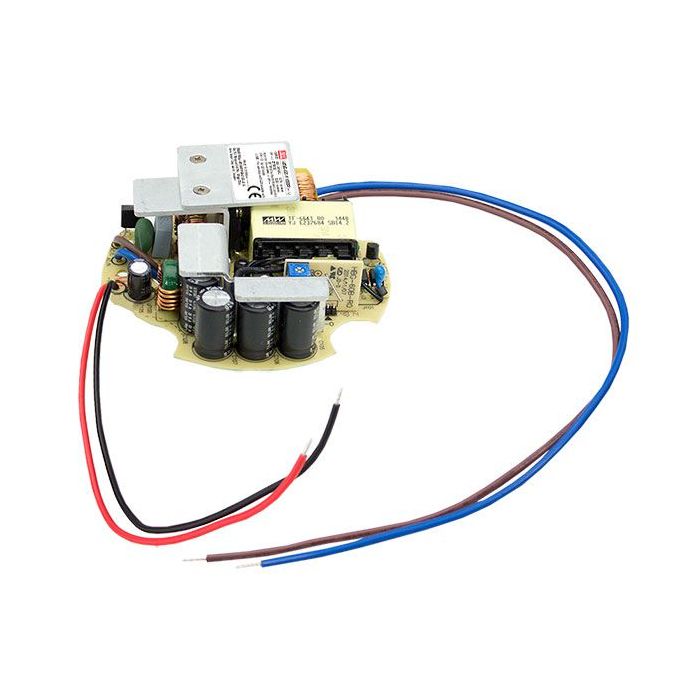

HBG-60-P-S – Mean Well HBG-60-P Series LED Power Supply 57.75-60.9W 19-55V For Sale

Constant current design5 years warrantyProtections: Short circuit Over temperatureOther features:Universal AC input Full range (up to 295VAC)Built-in active PFC function High efficiency up to 91%Cooling by free air convectionFully isolated plastic caseClass II power unit, no FGClass 2 power unitNo load power consumption <0.5W
More Information

Manufacturer

Mean Well

Output Wattage (W)

60

Output Current

Choose Option

Dimmable (Type)

No

DC Output Adjustment

37-55V

Dimensions

100 x 60.5mm

EMC Standards

Compliance to EN55015, EN61000-3-2 Class C (>65% load) ; EN61000-3-3, Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (Surge 2KV), criteria A

Input Voltage

90-295VAC

Safety Standards

UL8750,CSA C22.2 No. 250. 13-12, ENEC EN61347-1 & EN61347-2-13 independent, EN62384 approved

Output Voltage Options

Single

Working Temperature

-40°C-+80°C

PDF Datasheet

HBG-60-spec.pdf
