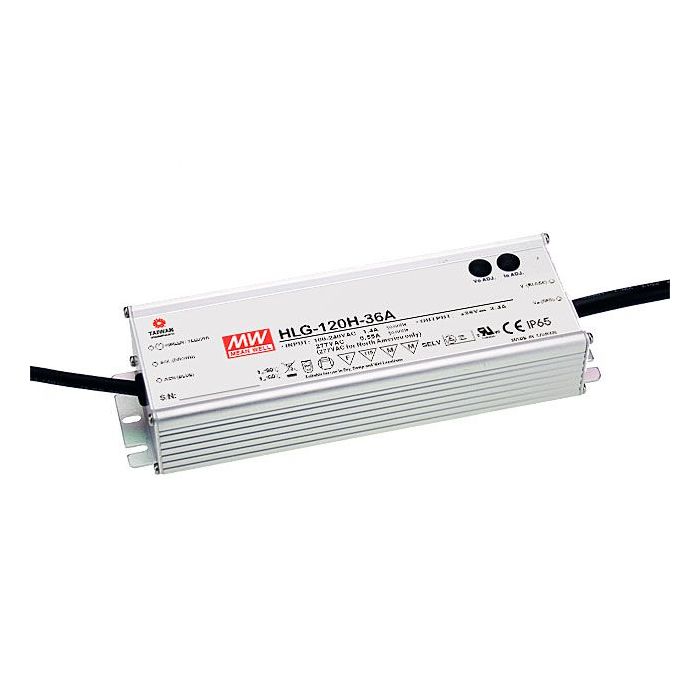

HLG-120H-BS – Mean Well HLG-120HB Series IP67 Rated LED Driver 120W 12V – 54V Online now

Built-in active PFC function, PF>0.9 for 60% of load or higherIP67 design for indoor or outdoor installationsProtections: Short circuit Over current Over voltage Over temperatureOther features:Universal AC input (up to 305VAC) Full rangeHigh efficiency up to 94% Output current adjustable through output cable or internal potentiometerCooling by free air convectionSuitable for dry, damp and wet locationSuitable for LED lighting and street lighting applicationsMeet 4KV surge immunity level (IEC61000-4-5)Multiple models for choice:Built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)5 years warranty
More Information

Manufacturer

Mean Well

Output Wattage (W)

120

Dimmable (Type)

1-10VDC, PWM signal, resistance

Dimensions

220 x 68 x 38.8 (LxWxH) Mm

EMC Standards

EN55015, EN55022, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024

Input Voltage

90~264VAC, 127~370VDC

Output Voltage Options

Single

Working Temperature

-40~+70°C

PDF Datasheet

HLG-120-spec.pdf
