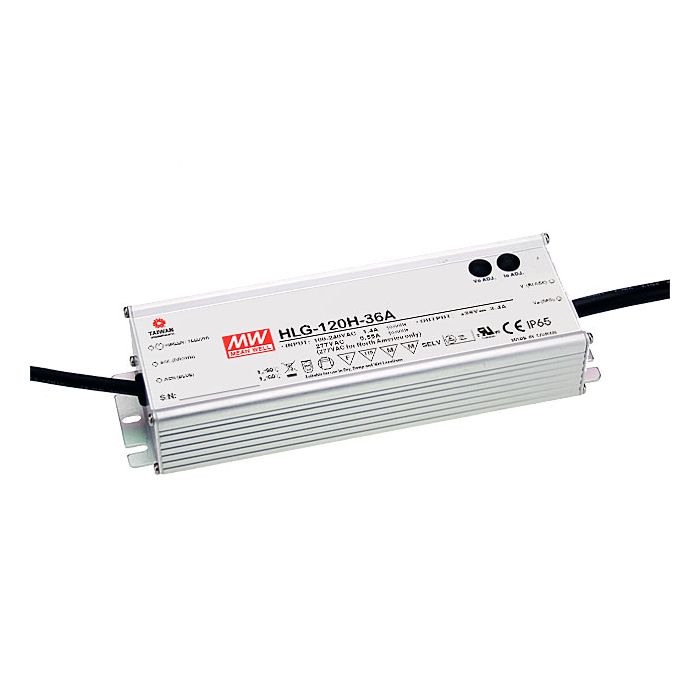

HLG-120H-S – Mean Well HLG-120H Series LED Driver 120W 12V – 54V on Sale
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Output voltage and constant current level can be adjusted through internal potentiometer.
IP65 rated
Protections: Short circuit Over current Over voltage Over temperature
Other features:
Universal AC input (up to 305VAC) Full range
High efficiency up to 94%
Output current adjustable through output cable or internal potentiometer
Cooling by free air convection
Suitable for dry, damp and wet location
Suitable for LED lighting and street lighting applications
Meet 4KV surge immunity level (IEC61000-4-5)
Multiple models for choice:
IP65 Rated
5 years warranty
More Information
Manufacturer
Mean Well
Output Wattage (W)
120
Dimmable (Type)
Choose Option
DC Output Adjustment
-0
EMC Standards
EN55015, EN55022, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024
Input Voltage
90~305VAC, 127~431VDC
Safety Standards
TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved
Output Voltage Options
Single
Working Temperature
-40~+70°C
PDF Datasheet
HLG-120-spec.pdf
