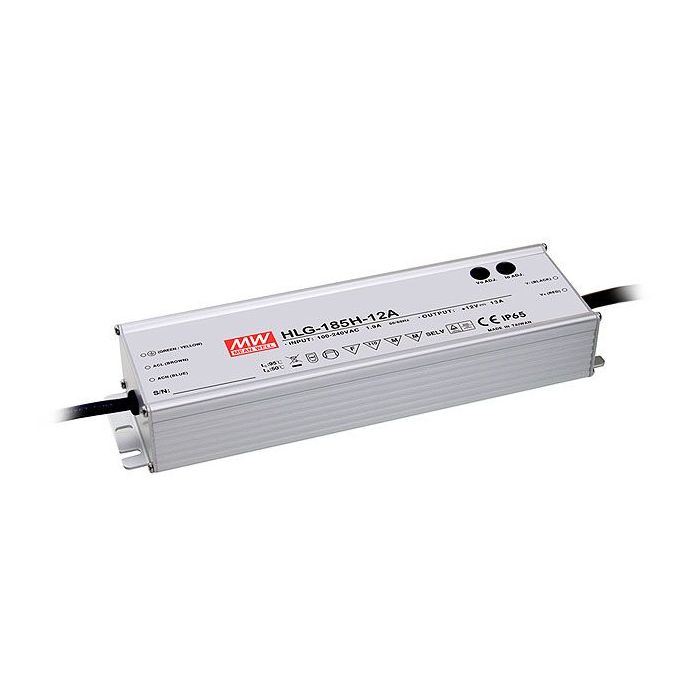

HLG-185H-BS – Mean Well HLG-185HB Series IP67 Rated LED Driver 156W – 186W 12V – 54V For Discount

IP67 design for indoor or outdoor installationsBuilt-in active PFC, PF>0.9 for 60% of load or higher5 years warrantyProtections: Short circuit Over current Over voltage Over temperatureOther features:Universal AC input (up to 305VAC) Full rangeHigh efficiency up to 95%Output current adjustable through output cable or internal potentiometerCooling by free air convectionSuitable for LED lighting and street lighting applicationsMeet 4KV surge immunity level (IEC61000-4-5)Optional CQC models availableIP67rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)
More Information

Manufacturer

Mean Well

Output Wattage (W)

185

Dimmable (Type)

1-10VDC, PWM signal, resistance

Dimensions

228 x 68 x 38.8 (LxWxH) mm

EMC Standards

EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547

Input Voltage

90~305VAC, 127~431VDC

Safety Standards

UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13, UL1012, UL60950-1

Output Voltage Options

Single

Working Temperature

-40~+70°C

PDF Datasheet

HLG-185H-spec.pdf
