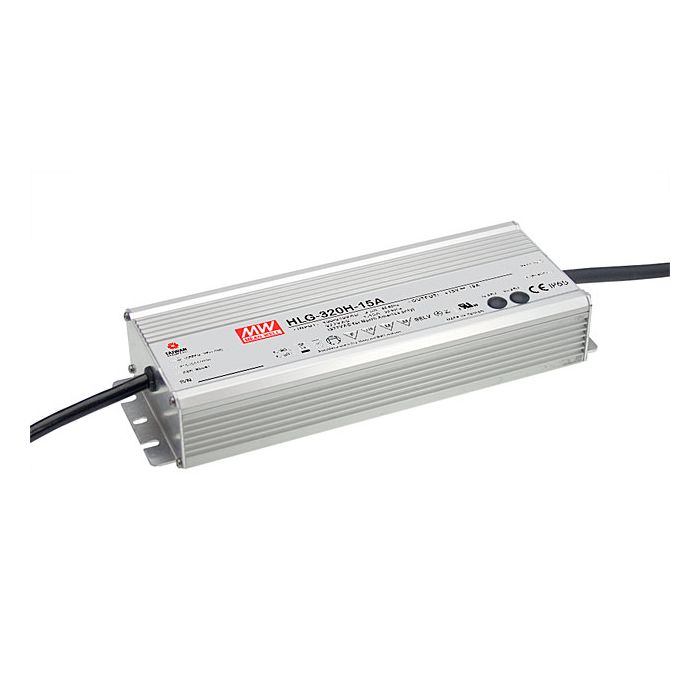

HLG-320H-15B – Mean Well LED Driver HLG-320H-15B 320W 15V Hot on Sale

Built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)IP67 design for indoor or outdoor installationsProtections: Short circuit Over current Over voltage Over temperatureOther features:Universal AC input (up to 305VAC) Full rangeHigh efficiency up to 95% Output current adjustable through output cable or internal potentiometerCooling by free air convectionSuitable for LED lighting and street lighting applicationsMeet 4KV surge immunity level (IEC61000-4-5)Built-in active PFC function, PF>0.9 for 60% of load or higher5 years warranty
More Information

Manufacturer
Mean Well

Output Wattage (W)
320

Output Voltage
15V

Dimmable (Type)
1-10VDC, PWM signal, resistance

DC Output Adjustment
+ -6% rated output voltage

Dimensions
252 x 90 x 43.8

EMC Standards
EN55015, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547

Input Voltage
90~305VAC, 127~431VDC

Safety Standards
UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, UL1012, UL60950-1

Output Voltage Options
Single

Working Temperature
-40~+70°C

PDF Datasheet
HLG-320H-spec_1.pdf
