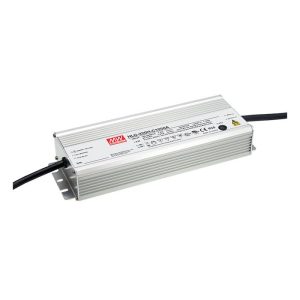

HLG-320H-C1750 – Mean Well LED Driver HLG-320H-C1750 320.25W 1750mA Online Hot Sale

Io adjustable through built-in potentiometer and environment adaptiveness
Constant current design
Metal housing with class I design
Protections: Short circuit Over voltage Over temperature
Other features:

IP65 design for indoor or outdoor installations
Output adjustable via potentiometer
Typical lifetime >62000 hours
7 years warranty
More Information

Manufacturer
Mean Well

Output Wattage (W)
320.25

Output Current
1750mA

Dimmable (Type)
Potentiometer

Output Voltage Range (V)
187

Dimensions
252x 90x 43.8

EMC Standards
Compliance to EN55015, EN61000-3-2 Class C (@ load >50%) ; EN61000-3-3 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV)

Input Voltage
90-305VAC 127-431VDC

Safety Standards
UL8750 (type”HL”); CSA C22.2 No. 250 13-12; ENEC EN61347-1, EN61347-2-13 independent; IP65 or IP67 approved

Output Voltage Options
Single

Working Temperature
Tcase= -40~+85°C (Refer to “Output load vs temperature” section of the datasheet)

PDF Datasheet
HLG-320H-C-SPEC.PDF
