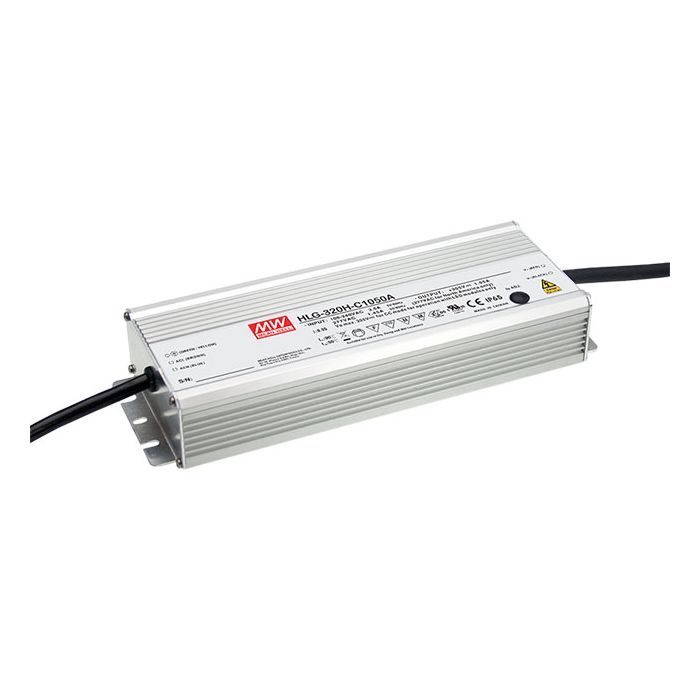

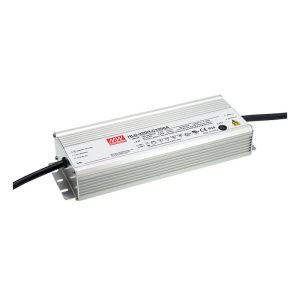

HLG-320H-C2100B – Mean Well Dimmable LED Driver HLG-320H-C2100B 320W 2100mA Discount
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Constant current design
Metal housing with class I design
Protections: Short circuit Over voltage Over temperature
Other features:
IP67 design for indoor or outdoor installations
3 in 1 dimming; Smart timer dimming
Typical lifetime >62000 hours
7 years warranty
More Information
Manufacturer
Mean Well
Output Wattage (W)
320
Output Current
2100mA
Dimmable (Type)
1-10VDC, PWM signal, resistance
Output Voltage Range (V)
156
Dimensions
252x 90x 43.8
EMC Standards
Compliance to EN55015, EN61000-3-2 Class C (@ load >50%) ; EN61000-3-3 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV)
Input Voltage
90-305VAC 127-431VDC
Safety Standards
UL8750 (type”HL”); CSA C22.2 No. 250 13-12; ENEC EN61347-1, EN61347-2-13 independent; IP65 or IP67 approved
Output Voltage Options
Single
Working Temperature
Tcase= -40~+85°C (Refer to “Output load vs temperature” section of the datasheet)
PDF Datasheet
HLG-320H-C-SPEC.PDF
