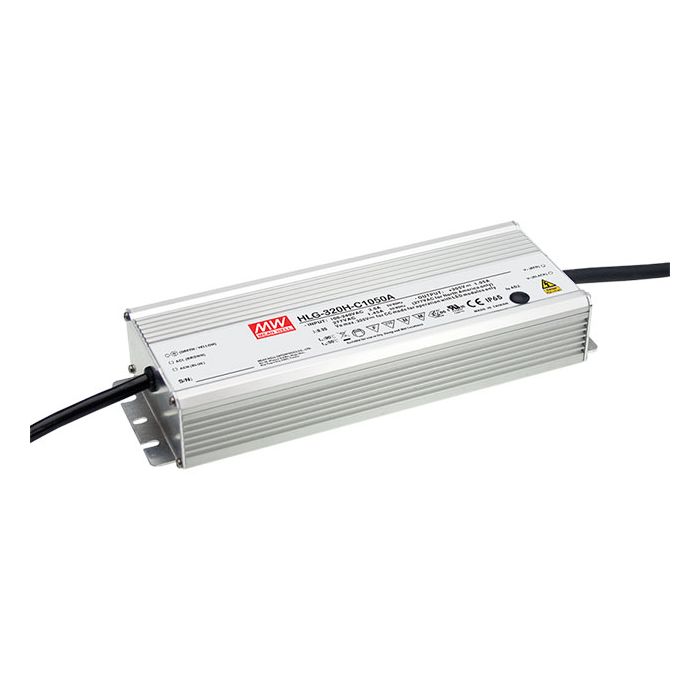

HLG-320H-C700A – Mean Well LED Driver HLG-320H-C700 299.6W 700mA on Sale
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Currently on a 5 Week delivery time
o adjustable through built-in potentiometer and environment adaptiveness Constant current design Metal housing with class I design Protections: Short circuit Over voltage Over temperature Other features: IP65 design for indoor or outdoor installations Output adjustable via potentiometer Typical lifetime >62000 hours 7 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 299.6 Output Current 700mA Dimmable (Type) Potentiometer Output Voltage Range (V) 435 Dimensions 252x 90x 43.8 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (@ load >50%) ; EN61000-3-3 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV) Input Voltage 90-305VAC 127-431VDC Safety Standards UL8750 (type”HL”); CSA C22.2 No. 250 13-12; ENEC EN61347-1, EN61347-2-13 independent; IP65 or IP67 approved Output Voltage Options Single Working Temperature Tcase= -40~+85°C (Refer to “Output load vs temperature” section of the datasheet) PDF Datasheet HLG-320H-C-SPEC.PDF
