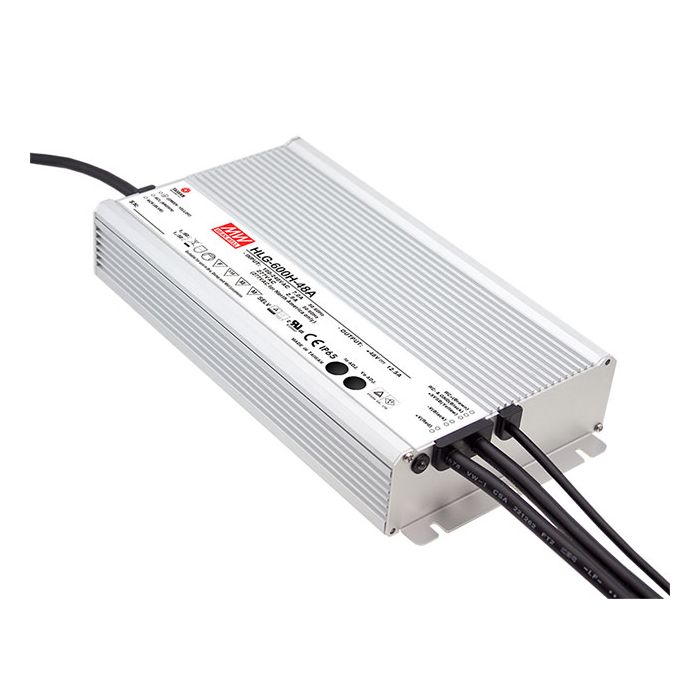

HLG-600H-S – Mean Well HLG-600H Series LED Driver 480W – 605W 12V – 54V Cheap

Output voltage and C.C level can be adjusted through internal potentiometerIP65 design for indoor or outdoor installationsProtections: Short circuit Over current Over voltage Over temperatureOther features: Universal AC input (up to 305VAC) Full range High efficiency up to 95% Output current adjustable through output cable or internal potentiometer Cooling by free air convection Suitable for LED lighting and street lighting applications Meet 4KV surge immunity level (IEC61000-4-5) Built-in active PFC function, PF>0.9 for 60% of load or higher5 years warranty
More Information

Manufacturer

Mean Well

Output Wattage (W)

600

Dimmable (Type)

Choose Option

EMC Standards

Compliance to EN55015, EN61000-3-2 Class C (?50% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge 4KV), criteria A

Input Voltage

90~305VAC 127~431VDC

Safety Standards

UL8750, CSA C22.2 No. 250.13-12, EN61347-1, EN61347-2-13 independent, IP67

Output Voltage Options

Single

Working Temperature

-40~+70°C

PDF Datasheet

HLG-600H-spec_17.pdf
