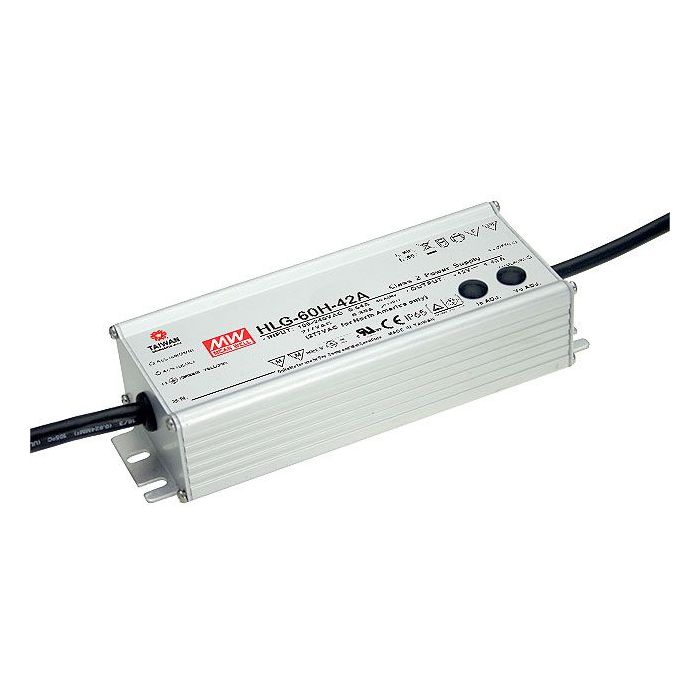

HLG-60H-BS – Mean Well HLG-60HB Series IP67 Rated LED Driver 60W 15V – 54V For Cheap

IP67 design for indoor or outdoor installationsBuilt-in active PFC, PF>0.9 for 60% of load or higher5 years warrantyProtections: Short circuit Over current Over voltage Over temperatureOther features:Universal AC input (up to 305VAC) Full rangeHigh efficiency up to 90.5%Output current adjustable through output cable or internal potentiometerCooling by free air convectionSuitable for dry, damp and wet locationSuitable for LED lighting and street lighting applicationsMeet 4KV surge immunity level (IEC61000-4-5)Class 2 power unitIP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)
More Information

Manufacturer

Mean Well

Output Wattage (W)

60

Dimmable (Type)

1-10VDC, PWM signal, resistance

EMC Standards

EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024

Input Voltage

90~305VAC, 127~431VDC

Safety Standards

UL8750, TUV EN61347-1, EN61347-2-13 approved; Design refer to UL60950-1, EN60950-1, EN60335-1

Output Voltage Options

Single

Working Temperature

-40~+70°C

PDF Datasheet

HLG-60H-spec.pdf
