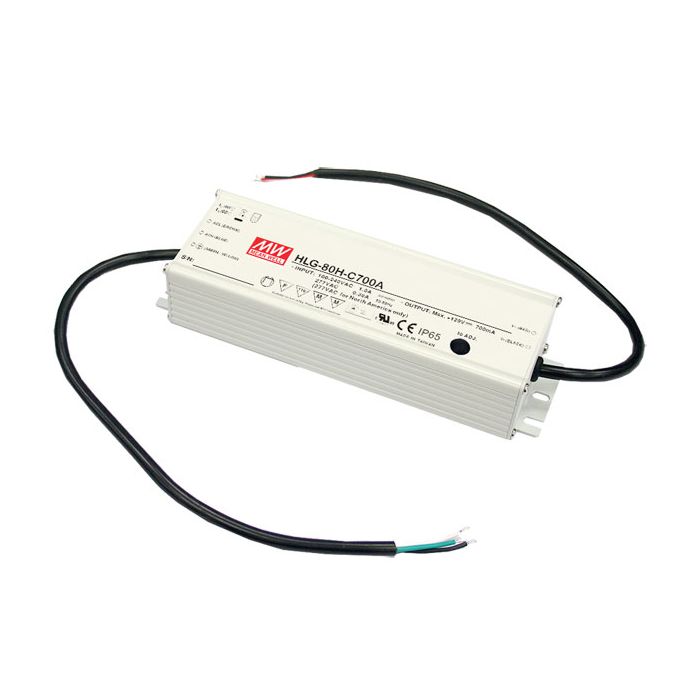

HLG-80H-C350B – Mean Well LED Driver HLG-80H-C350B 90W 350mA Fashion

Three in one dimming function (1~10Vdc or 10V PWM signal or resistance)Constant current designProtections: Short circuit Over voltage Over temperatureUniversal AC input Full range (up to 305VAC)Built-in active PFC functionCooling by free air convectionOutput current adjustable through output cableIP67 design for indoor or outdoor installationsSuitable for dry damp wet locationsHigh efficiency up to 91.5%5 years warranty
More Information

Manufacturer
Mean Well

Output Wattage (W)
90

Output Current
3500mA

Dimmable (Type)
1-10VDC, PWM signal, resistance

Output Voltage Range (V)
167~257

Dimensions
195.6x 61.5x 38.8

EMC Standards
Compliance to EN55015, EN61000-3-2 Class C ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, heavy industry level (surge L,N-FG: 4KV), criteria A

Input Voltage
90~305VAC, 127VDC~431VDC

Safety Standards
UL8750, CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13 independent, IP67 approved

Output Voltage Options
Single

Working Temperature
-40~+50°C (refer to output derating curve)

PDF Datasheet
HLG-80H-C-spec.pdf
