HLG-80H-S – Mean Well HLG-80H A Series LED Driver 80W 12V – 54V Online Sale
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200

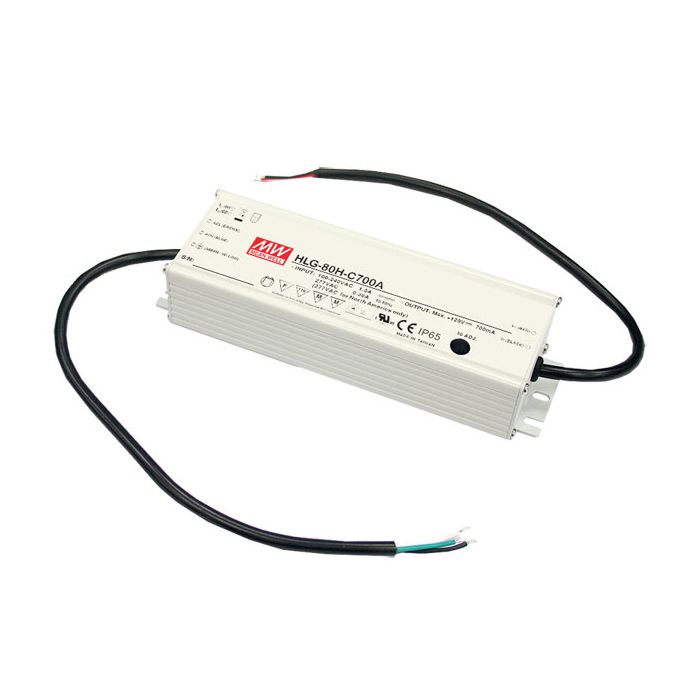

The Mean Well HLG-80H-A Series LED Driver is IP65 rated and designed for indoor or outdoor installations. Ideal for indoor LED lighting as well as LED street lighting these drivers come complete with a 5 year warranty.
Other features:
Universal AC input (up to 305VAC) Full range
High efficiency up to 94%
Output current adjustable through output cable or internal potentiometer
Cooling by free air convection
Suitable for dry, damp and wet location
Suitable for LED lighting and street lighting applications
Meet 4KV surge immunity level (IEC61000-4-5)
Class 2 power unit
Output voltage and C.C level can be adjusted through internal potentiometer
More Information
Manufacturer
Mean Well
Output Wattage (W)
80
Dimmable (Type)
1-10VDC, PWM signal, resistance
DC Output Adjustment
+ -10% rated output voltage
Dimensions
195.6x 61.5x 38.8
EMC Standards
EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024
Input Voltage
90~305VAC, 127~431VDC
Safety Standards
UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-2-13 approved; Design refer to UL60950-1, EN60950-1
Output Voltage Options
Single
Working Temperature
-40~+50°C (refer to output derating curve)
PDF Datasheet
HLG-80H-spec.pdf
