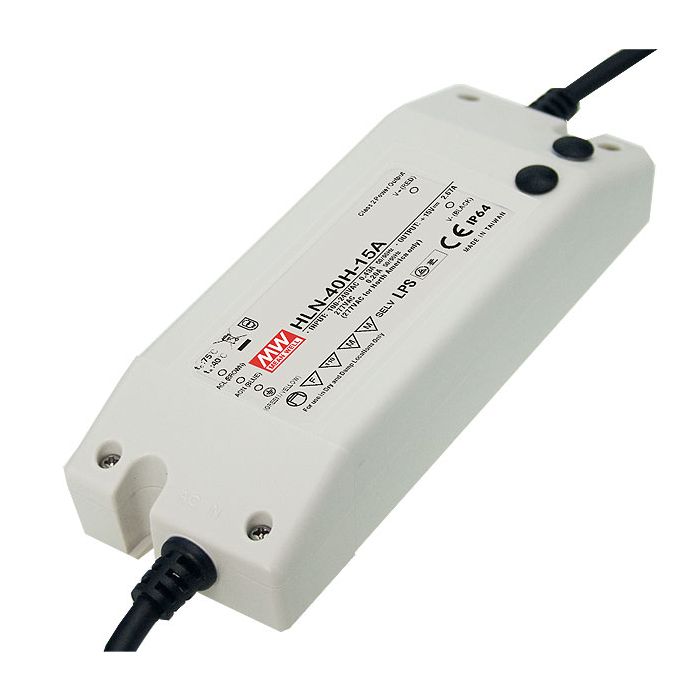

HLN-40H-15A – Mean Well LED Driver HLN-40H-15A 40W 15V Hot on Sale

Built-in active PFC function, PF> 0.9 for 60% load or higherBuilt-in constant current limiting circuit (C.V. + C.C mode) Protections: Short circuit Over current Over voltage Over temperature Other features:Universal AC input (up to 305VAC) Full rangeFully isolated plastic case with IP64 levelClass 2 power unitHigh efficiency up to 91%Cooling by free air convectionSuitable for dry, damp locationsSuitable for LED lighting and moving sign applicationsIP64 rated. Output and C.C level can be adjusted through internal potentiometer3 years warranty
More Information

Manufacturer
Mean Well

Output Wattage (W)
40

Output Voltage
15V

Dimmable (Type)
1-10VDC, PWM signal, resistance

DC Output Adjustment
+ -10% rated output voltage

EMC Standards
EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024

Input Voltage
90~305VAC; 127~431VDC

Safety Standards
UL8750, TUV EN61347-1, EN61347-2-13 approved; Design refer to UL EN60950-1, EN60335-1, UL8750, TUV EN61347-1, ENG1347-2-13, PSE J61347-1

Output Voltage Options
Single

Working Temperature
-40~+50°C (refer to output derating curve)

PDF Datasheet
HLN-40H-spec.pdf
