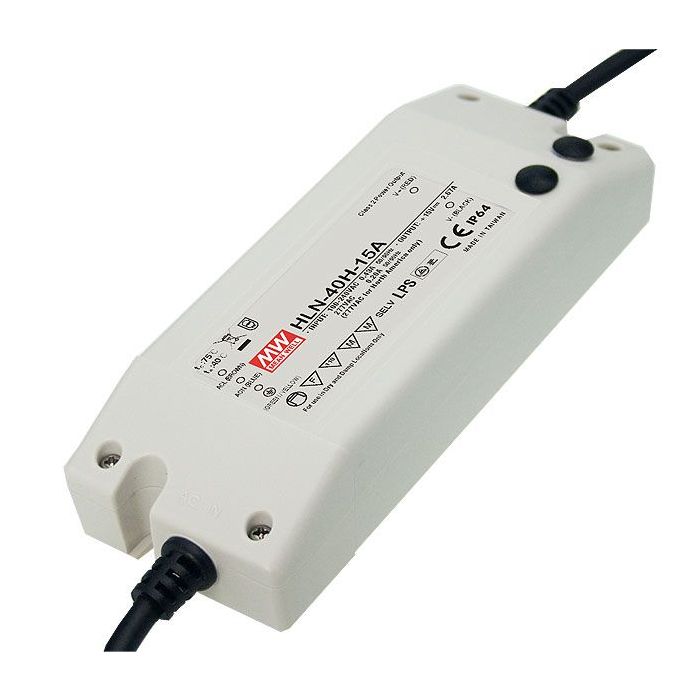

HLN-40H-BS – Mean Well HLN-40HB Series Dimmable LED Driver 40W 12V – 54V Cheap

Built-in 3 in 1 dimming function (1-10VDC, PWM signal, or resistance)Built-in constant current limiting circuit (C.V. + C.C mode) Protections: Short circuit Over current Over voltage Over temperature Other features:Universal AC input (up to 305VAC) Full rangeFully isolated plastic case with IP64 levelClass 2 power unitHigh efficiency up to 91%Cooling by free air convectionSuitable for LED lighting and moving sign applicationsBuilt-in active PFC function, PF> 0.9 for 60% load or higher3 years warranty
More Information

Manufacturer

Mean Well

Output Wattage (W)

40

Dimmable (Type)

1-10VDC, PWM signal, resistance

DC Output Adjustment

+ -10% rated output voltage

EMC Standards

EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024

Input Voltage

90~305VAC; 127~431VDC

Safety Standards

UL8750, TUV EN61347-1, EN61347-2-13 approved; Design refer to UL EN60950-1, EN60335-1, UL8750, TUV EN61347-1, ENG1347-2-13, PSE J61347-1

Output Voltage Options

Single

Working Temperature

-40~+50°C

PDF Datasheet

HLN-40H-spec.pdf
