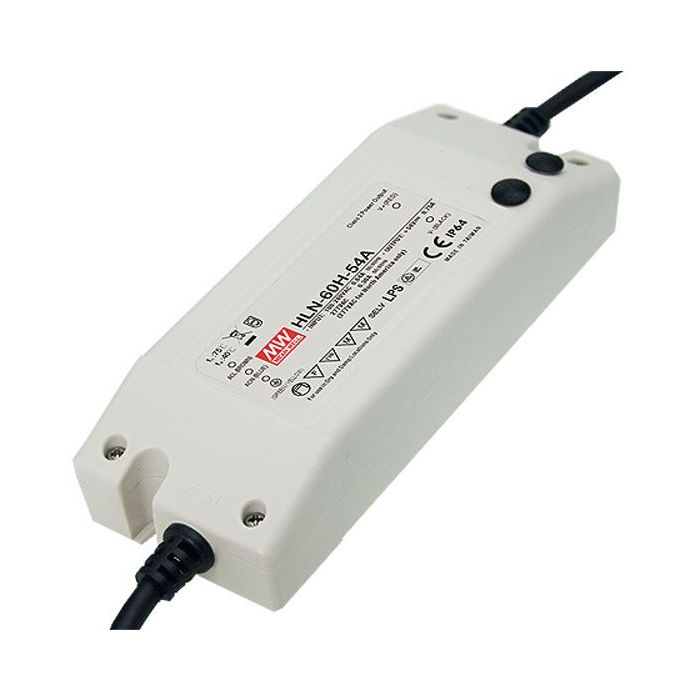

HLN-60H-BS – Mean Well HLN-60HB Series Dimmable LED Driver 60W 12V – 54V Online
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Built-in 3 in 1 dimming function (1-10VDC, PWM signal, or resistance)Built-in constant current limiting circuit (C.V. + C.C mode) Protections: Short circuit Over current Over voltage Over temperature Other features:Universal AC input (up to 305VAC) Full rangeFully isolated plastic case with IP64 levelClass 2 power unitHigh efficiency up to 91%Cooling by free air convectionSuitable for dry, damp locationsSuitable for LED lighting and moving sign applicationsBuilt-in active PFC function, PF> 0.9 for 60% load or higher3 years warranty
More Information
Manufacturer
Mean Well
Output Wattage (W)
60
Dimmable (Type)
1-10VDC, PWM signal, resistance
EMC Standards
EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024
Input Voltage
90~305VAC; 127~431VDC
Safety Standards
UL8750, TUV EN61347-1, EN61347-2-13 approved; Design refer to UL EN60950-1, EN60335-1, UL8750, TUV EN61347-1, ENG1347-2-13, PSE J61347-1
Output Voltage Options
Single
Working Temperature
-40~+70°C
PDF Datasheet
HLN-60H-spec.pdf
