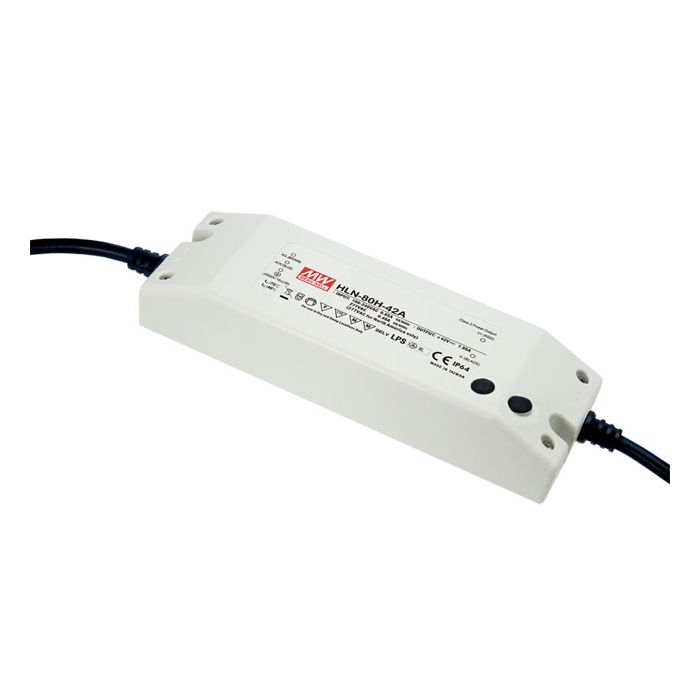

HLN-80H-54A – Mean Well LED Driver HLN-80H-54A 80W 54V For Discount

Output and C.C level can be adjusted through internal potentiometerBuilt-in constant current limiting circuit (C.V. + C.C mode) Protections: Short circuit Over current Over voltage Over temperature Other features:Universal AC input (up to 305VAC) Full rangeFully isolated plastic case with IP64 levelClass 2 power unitHigh efficiency up to 91%Cooling by free air convectionSuitable for dry, damp locationsSuitable for LED lighting and moving sign applicationsBuilt-in active PFC function, PF> 0.9 for 60% load or higher3 years warranty
More Information

Manufacturer
Mean Well

Output Wattage (W)
80

Output Voltage
54V

Dimmable (Type)
1-10VDC, PWM signal, resistance

DC Output Adjustment
+ -10% rated output voltage

EMC Standards
EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024

Input Voltage
90~305VAC; 127~431VDC

Safety Standards
UL8750, TUV EN61347-1, EN61347-2-13 approved; Design refer to UL EN60950-1, UL8750, TUV EN61347-1, ENG1347-2-13, PSE J61347-1, J61347-2-13

Output Voltage Options
Single

Working Temperature
-40~+70°C

PDF Datasheet
HLN-80H-spec_25.pdf
