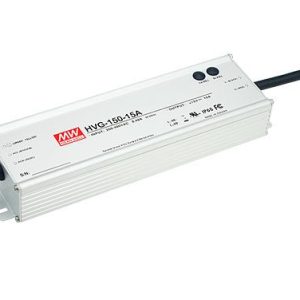

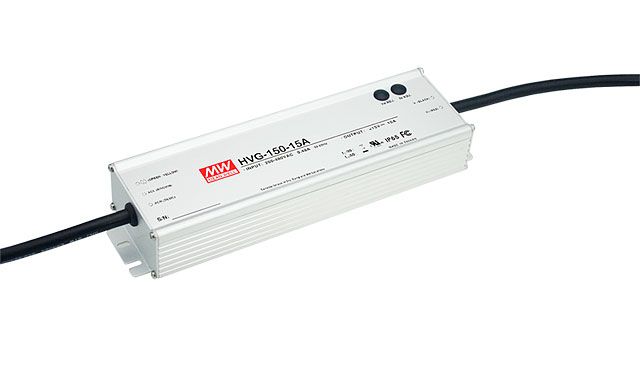

HVG-150-54A – Mean Well LED Driver HVG-150-54A 150W 54V Fashion

Wide input range 180~528VACHigh efficiency up to 91.5%Built-in active PFC functionProtections: Short circuit Over current Over voltage Over temperatureOther features:Cooling by free air convectionOutput voltage and CC level can be adjusted through internal potentiometerIP65 design for indoor or outdoor installationsSuitable for LED lighting and street lighting applicationsCompliance to worldwide safety regulations for lightingSuitable for dry damp wet locations5 years warranty
More Information

Manufacturer
Mean Well

Output Wattage (W)
150

Output Voltage
54V

DC Output Adjustment
49~58

Dimensions
245x 68x 38.8

EMC Standards
Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A

Input Voltage
180~528VAC 254VDC~747VDC

Safety Standards
UL8750, CSA C22.2 No. 250.0-08, IP65 approved

Output Voltage Options
Single

Working Temperature
-30~+60°C (Refer to Derating Curve )

PDF Datasheet
HVG-150-spec.pdf
