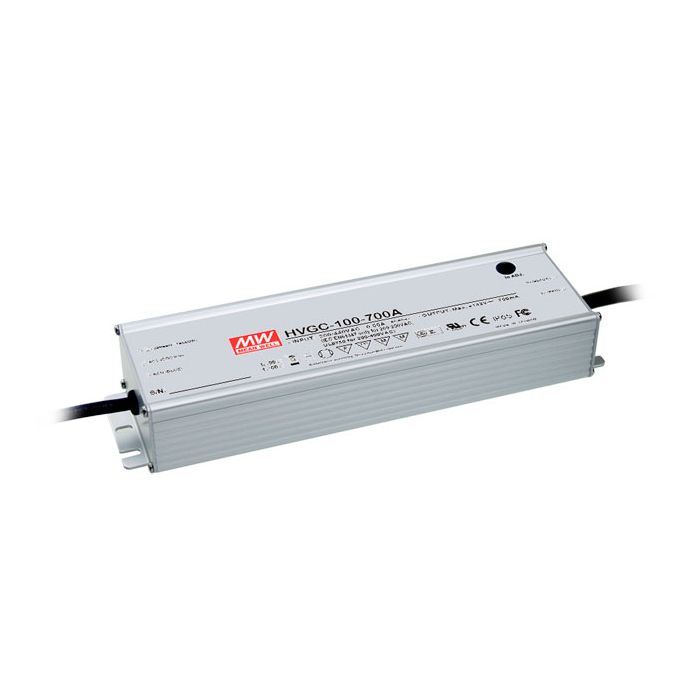

HVGC-100-700A – Mean Well LED Driver HVGC-100-700A 100W 700mA For Cheap

Output voltage and C.C level can be adjusted through internal potentiometerBuilt-in active PFC5 years warrantyProtections: Short circuit Over voltage Over temperatureOther features:High efficiency up to 92%Cooling by free air convectionConstant current designOutput current adjustable through output cable or internal potentiometerSuitable for dry, damp and wet locationsSuitable for LED lighting and street lighting applicationsIP65 design5 years warranty
More Information

Manufacturer
Mean Well

Output Wattage (W)
100

Output Current
700mA

Dimmable (Type)
1-10VDC, PWM signal, resistance

Output Voltage Range (V)
15~142

EMC Standards
Design refer to EN55015, FCC part 15 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547

Input Voltage
180~528VAC, 254~747VDC

Safety Standards
Design refer to UL8750, TUV EN61347-1, EN61347-2-13

Output Voltage Options
Single

Working Temperature
-30~+60°C (Refer to Derating Curve )

PDF Datasheet
HVGC-100-spec_6.pdf
