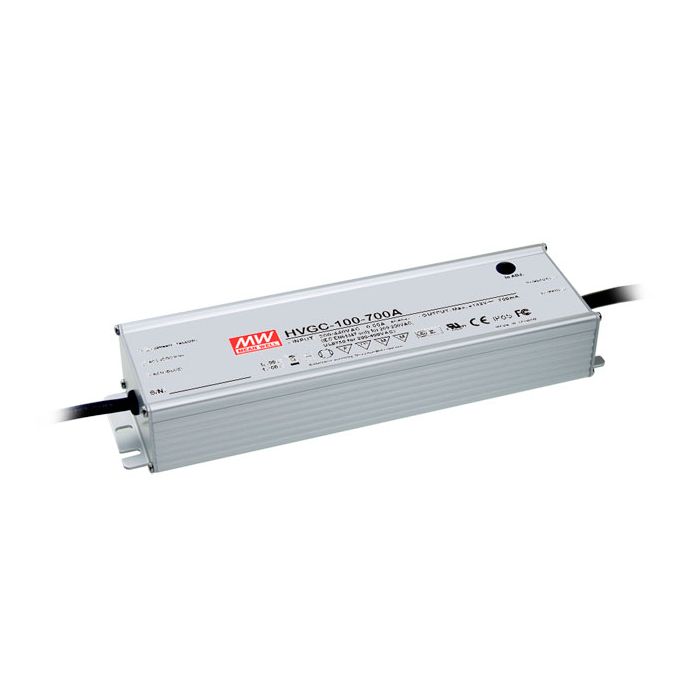

HVGC-100-S – Mean Well HVGC-100 Series LED Driver 100W 350mA – 1050mA Fashion

Constant current designWide input range 180~528VACThree in one dimming function (0~10Vdc or 10V PWM signal or resistance)Protections: Short circuit Over current Over voltage Over temperatureOther features:Built-in active PFC functionHigh efficiency up to 90.5%Cooling by free air convectionIP67 design for indoor or outdoor installationsSuitable for LED lighting and street lighting applicationsCompliance to worldwide safety regulations for lightingSuitable for dry damp wet locations5 year warranty
More Information

Manufacturer

Mean Well

Output Wattage (W)

65

Output Current

Choose Option

Dimmable (Type)

1-10VDC, PWM signal, resistance

Output Voltage Range (V)

18~186

EMC Standards

Compliance to EN55015, EN61000-3-2 Class C (?60% load) ; EN61000-3-3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A

Input Voltage

180~528VAC, 254~747VDC

Safety Standards

UL8750, CSA C22.2 No. 250.0-13, ENEC EN61347-1, EN61347-2-13, EN62384, independent, IP67 approved

Output Voltage Options

Single

Working Temperature

-20°C ~ +40°C @ 100% load ; 60°C @ 50% load

PDF Datasheet

HVGC-100-spec_4.pdf
