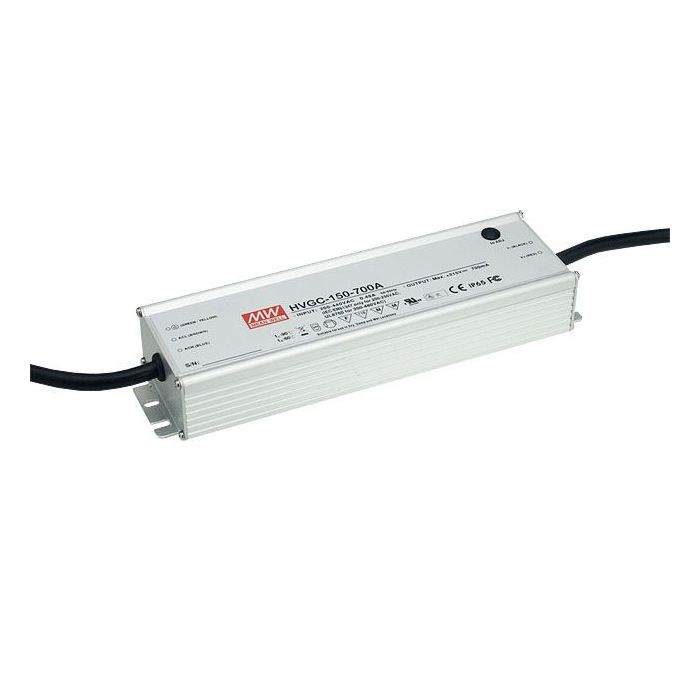

HVGC-150-BS – Mean Well HVGC-150 Series LED Driver 150W 350mA – 1400mA Online Sale

Constant current designWide input range 180~528VACThree in one dimming function (0~10Vdc or 10V PWM signal or resistance)Protections: Short circuit Over current Over voltage Over temperatureOther features:Built-in active PFC functionHigh efficiency up to 90.5%Cooling by free air convectionIP67 design for indoor or outdoor installationsSuitable for LED lighting and street lighting applicationsCompliance to worldwide safety regulations for lightingSuitable for dry damp wet locations5 year warranty
More Information

Manufacturer

Mean Well

Output Wattage (W)

150

Output Current

Choose Option

Dimmable (Type)

1-10VDC, PWM signal, resistance

Dimensions

245x 68x 38.8 (LxWxH) mm

EMC Standards

Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A

Safety Standards

UL8750, CSA C22.2 No. 250.0-08, IP65 approved

Output Voltage Options

Single

Working Temperature

-30~+70°C

PDF Datasheet

HVGC-65-spec.pdf
