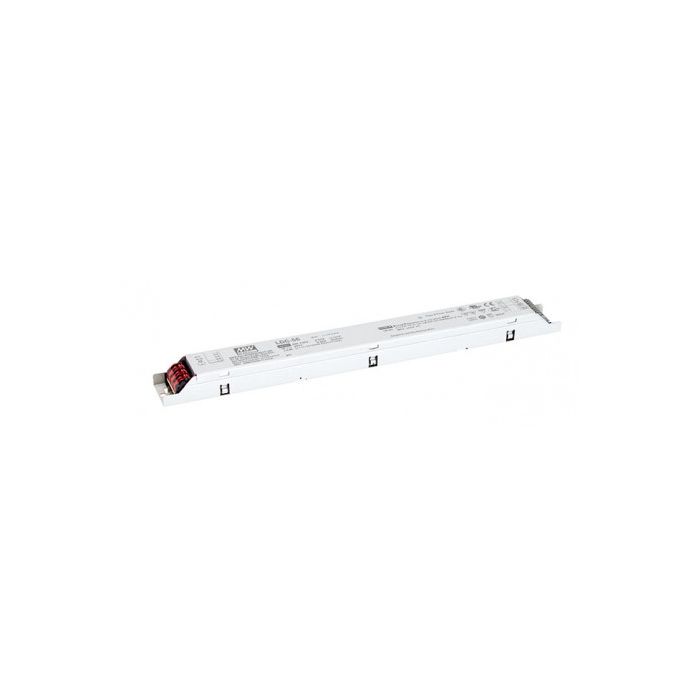

LDC-35S – Mean Well LDC-35 Series Constant Power LED Driver 300 – 1000mA 35W Online now

Features

Constant Power mode output
Metal housing design
Full Power at 70~100% max Current
Built-in active PFC function
Flicker Free design
No load Standby power consumption <0.5W
Output current level pre-settable
Typical lifetime>50000 hours
SELV and Isolated
Class 2 power supply
5 years warranty
More Information

Manufacturer

Mean Well

Output Wattage (W)

35

Dimmable (Type)

3 in 1 Dimming

Output Voltage Range (V)

27 ~ 56V

DC Output Adjustment

27-56V & 300-1000mA

Dimensions

280 x 30 x 21mm

EMC Standards

Compliance to EN55015, EN61000-3-2 Class C (>50% load);EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity:Line-Line:1KV)

Input Voltage

180-295VAC

Safety Standards

UL8750,CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13, EN62384; GB19510.14,GB19510.1 approved

Output Voltage Options

Single

Working Temperature

-25°C-+80°C

PDF Datasheet

LDC-35-spec.pdf
