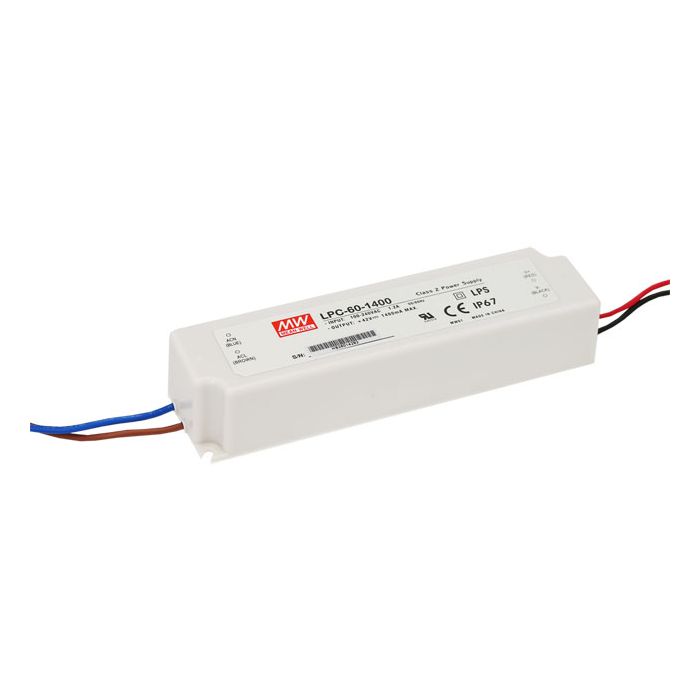

LPC-60-S – Mean Well LLPC-60 Series ED Driver 60W 1050mA – 1750mA For Discount
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Constant CurrentFully encapsulated with IP67 levelProtections: Short circuit Overload Over voltage Other features:Universal AC input Full rangeWithstand 300VAC surge input for 5 secondsIsolation class II, no F.G.Cooling by free air convectionClass 2 power unitPass LPS100% full load burn-in testLow cost, high reliability2 years warranty
More Information
Manufacturer
Mean Well
Output Wattage (W)
60
Output Current
Choose Option
Dimmable (Type)
No
Output Voltage Range (V)
9~34
Dimensions
162.5 x 42.5 x 32
EMC Standards
EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11
Input Voltage
90~264VAC
Safety Standards
UL1310, UL879 approved; Design refer to TUV EN60950-1, EN61347-2-13
Output Voltage Options
Single
Working Temperature
-40~+70°C (refer to output derating curve)
PDF Datasheet
LPC-60-spec_2.pdf
