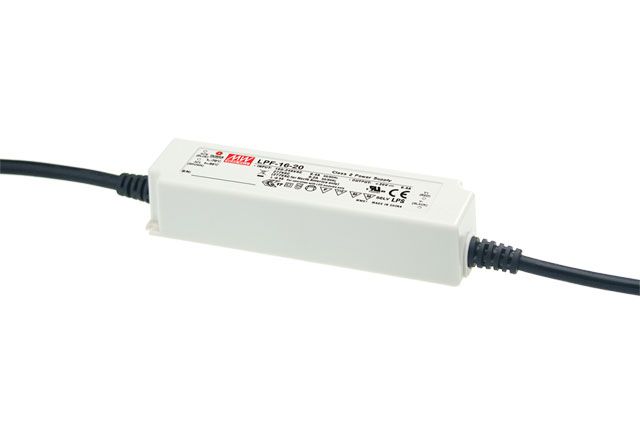

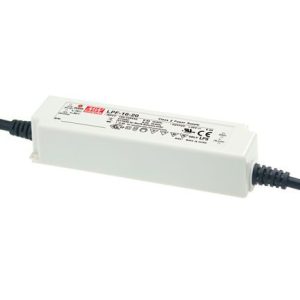

LPF-16-S – Mean Well LPF-16 Series LED Driver 16W 12V – 54V Online now
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Built-in active PFC functionUniversal AC input (up to 305VAC) Full RangeProtections: Short circuit Overload Over voltage Over temperatureOther features: Fully isolated plastic case with IP30 levelCooling by free air convectionIsolation class II, no F.G.Class 2 power unit5 years warranty
More Information
Output Wattage (W)
16
Output Voltage
Choose Option
Dimensions
148 x 40 x 30
EMC Standards
EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11
Input Voltage
90~305VAC; 127~431VDC
Safety Standards
Design refer to UL8750 ENEC EN61347-1, EN61347-2-13
Output Voltage Options
Single
Working Temperature
-40~+70°C (refer to output derating curve)
PDF Datasheet
LPF-16-spec_12.pdf
