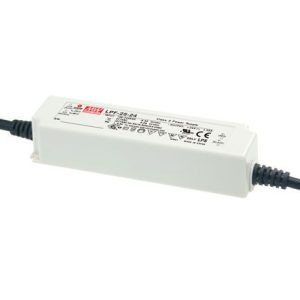

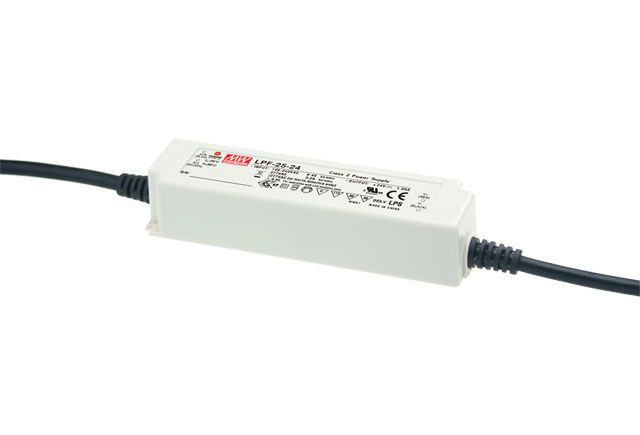

LPF-25-S – Mean Well LPF-25 Series LED Driver 25W 12V – 54V Online Sale
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Built-in active PFC functionFully encapsulated with IP67 levelProtections: Short circuit Overload Over voltage Over temperatureOther features: Universal AC input (up to 305VAC) Full RangeFully isolated plastic caseIsolation class II, no F.G.Class 2 power unitSuitable for dry, damp, wet location5 years warranty
More Information
Output Wattage (W)
25
Output Voltage
Choose Option
Dimensions
148 x 40 x 30
EMC Standards
EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11
Input Voltage
90~305VAC; 127~431VDC
Safety Standards
Design refer to UL8750 ENEC EN61347-1, EN61347-2-13
Output Voltage Options
Single
Working Temperature
-40~+70°C (refer to output derating curve)
PDF Datasheet
LPF-25-spec_10.pdf
