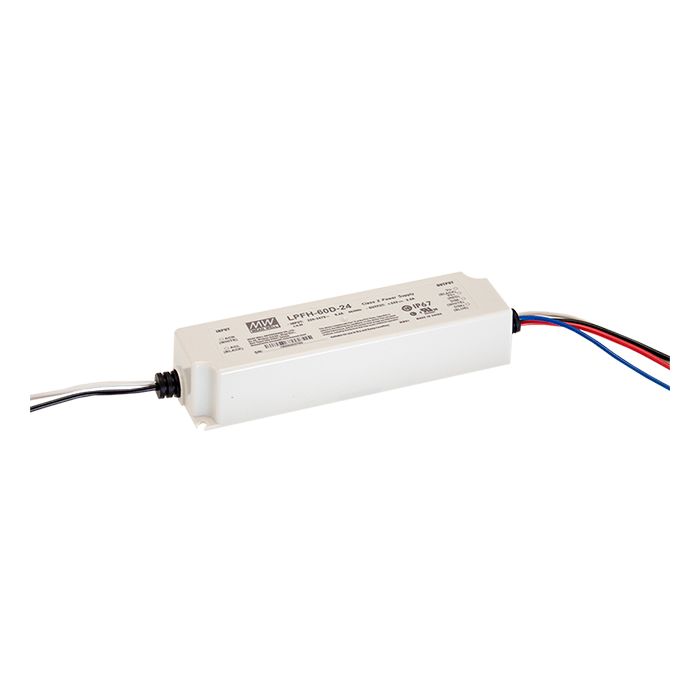

LPFH-60D-54 – Mean Well LED Driver LPFH-60D-54 Series 1.12A 60.48W Supply

Built-in active PFC functionProtections: Short circuit Over voltage Over temperatureOther features:Constant Current mode outputPlastic housing with Class II designIP67 rating for indoor or outdoor installationsClass 2 power unitFunction: 3 in 1 dimmingTypical lifetime>50000 hours5 years warranty
More Information

Manufacturer
Mean Well

Output Wattage (W)
60

Output Voltage
54V

Dimmable (Type)
1-10VDC, PWM signal, resistance

Dimensions
162.5x 43x 32

EMC Standards
Compliance to FCC part 15 class B (@load>60%) Compliance to IEC61000-4-2,4,5; light industry level (surge immunity : Line-Line:2KV)

Input Voltage
200-400VAC, 282-565VDC

Safety Standards
UL8750(type HL ), CSA C22.2 No. 250.0-08(except for 48V, 54V), IP67 approved

Output Voltage Options
Single

Working Temperature
-40-+90°C

PDF Datasheet
LPFH-60D-SPEC.pdf
