NLP 1 IP65 Remote Conversion Range on Sale

The NLP 1 IP65, is a high quality 3-hour switchable emergency lighting module designed to suit a wide range of LED types, circuits and applications. The unit is designed to work with lithium iron phosphate (LiFePO4) batteries and is available in 2 versions, one to operate within lower SELV limits <60V and another to operate <80V. The module automatically adjusts the output current to provide the best match between the battery and the load, providing maximum illumination whilst ensuring full battery duration. The pack features an IP65 rated green charge healthy indicator LED. This range operates with the latest LiFePO4 battery technology, dramatically reducing energy consumption and facilities management labour.

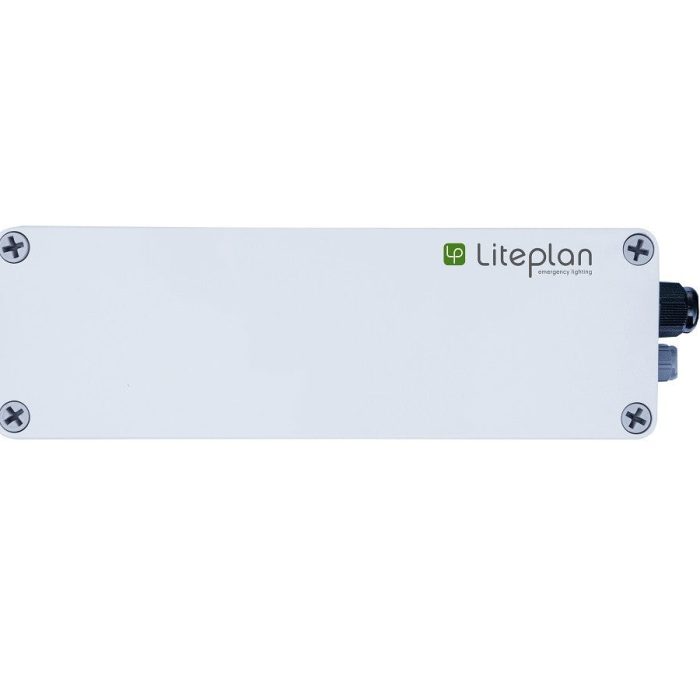

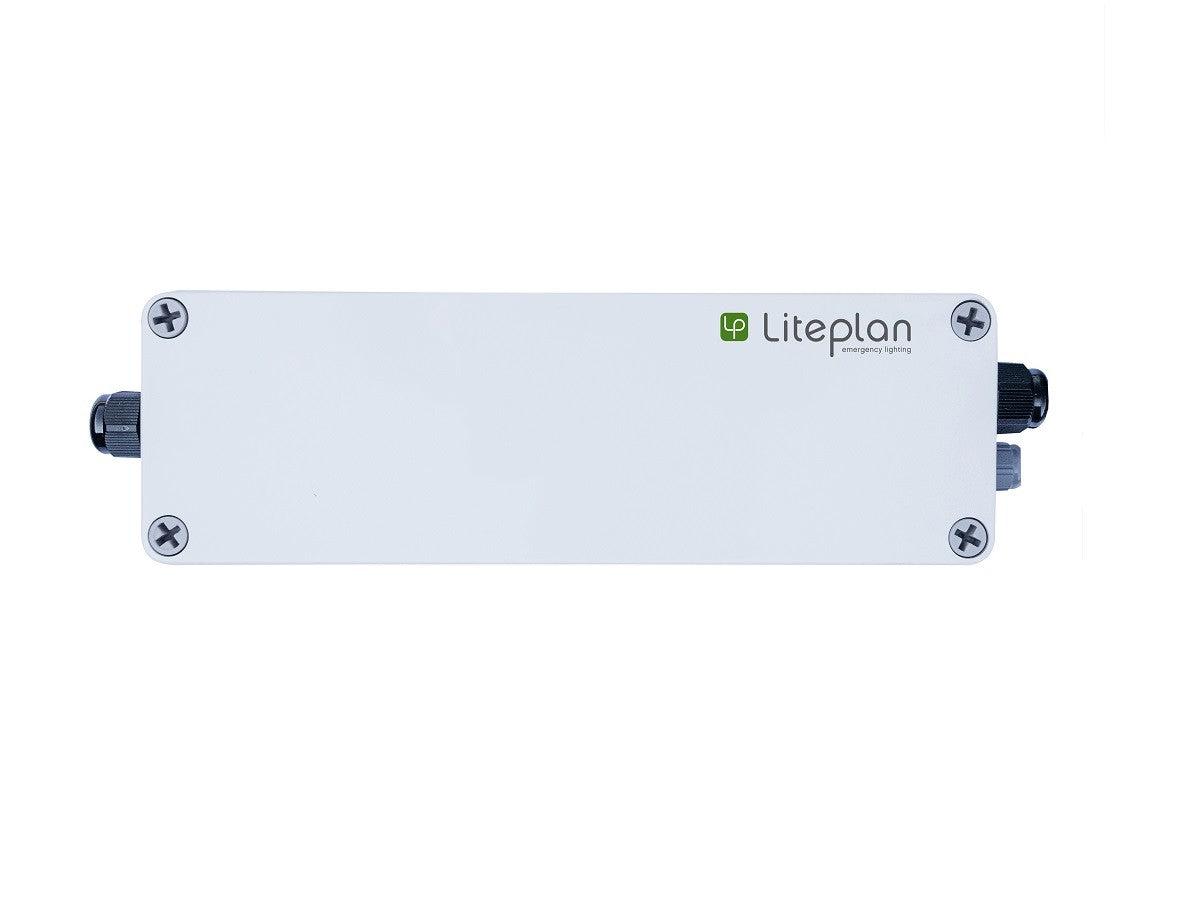

The emergency control gear and batteries are housed within a single piece IP65 rated enclosure which includes suitable termination for connection to the LED load, the mains driver and input termination for mains supplies.

Order Codes

Order Code		Description
NLP 1 IP65		6-55V Module and single cell battery housed in an IP rated enclosure with IP rated LED
		Suitable for mounting in damp or wet locations
NLP 1 80 IP65		6-79V Module and single cell battery housed in an IP rated enclosure with IP rated LED
		Suitable for mounting in damp or wet locations

Please select	NLP/1/IP65, NLP/1/80/IP65
