NLP 1 TP40 Remote Conversion Range Kits Hot on Sale

Order Codes Please Select

Order Codes

Order Code		Description
NLP 1 TP40		6-55V module and single cell battery fitted with strain relief cables to module and battery
		Suitable for wiring to the luminaire remotely. 40mm aperture
NLP 1 80 TP40		6-79V module and single cell battery fitted with strain relief cables to module and battery
		Suitable for mounting inside the luminaire
NLP 1S TP40		6-55V module and three cell battery fitted with strain relief cables to module and battery
		Suitable for wiring to the luminaire remotely. 40mm Aperture
NLP 1S 80 TP40		6-79V module and three cell battery fitted with strain relief cables to module and battery
		Suitable for mounting in damp or wet locations

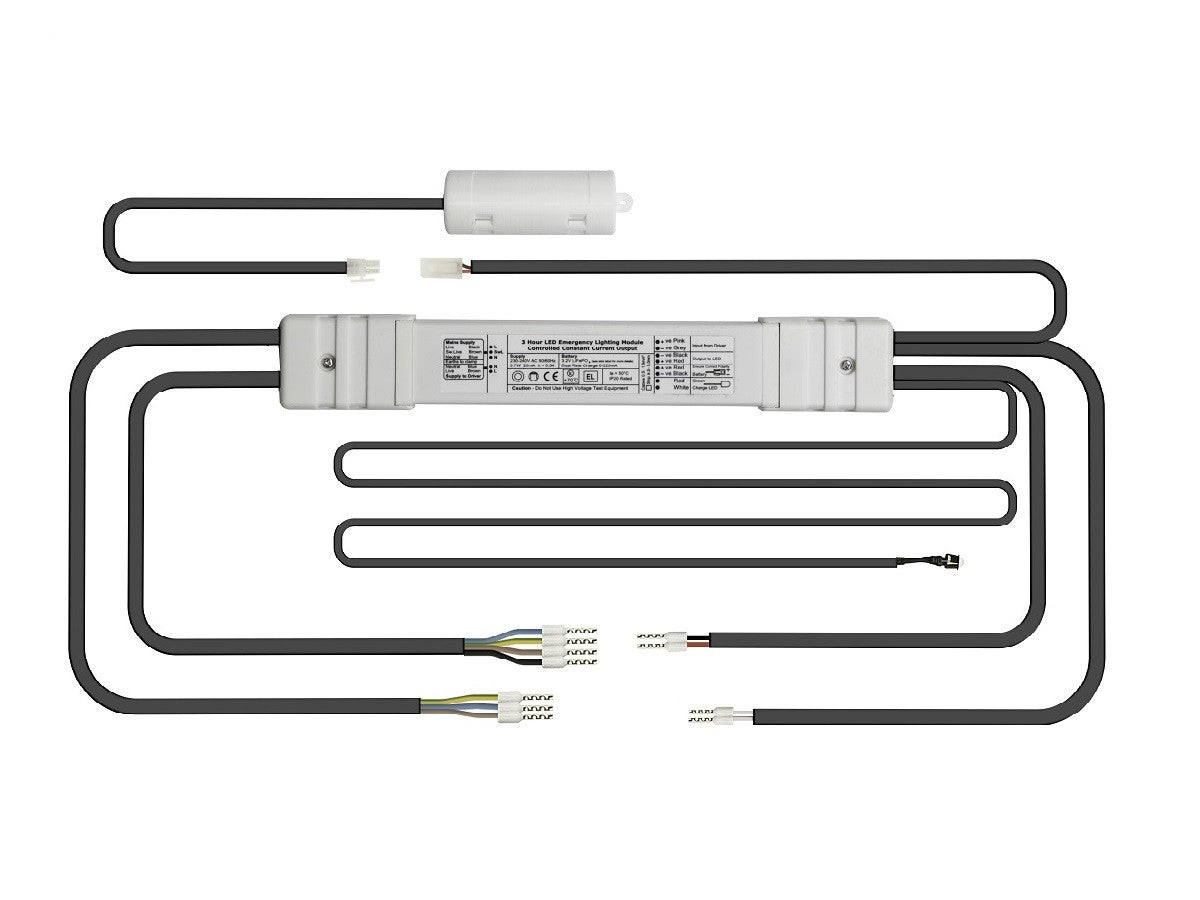

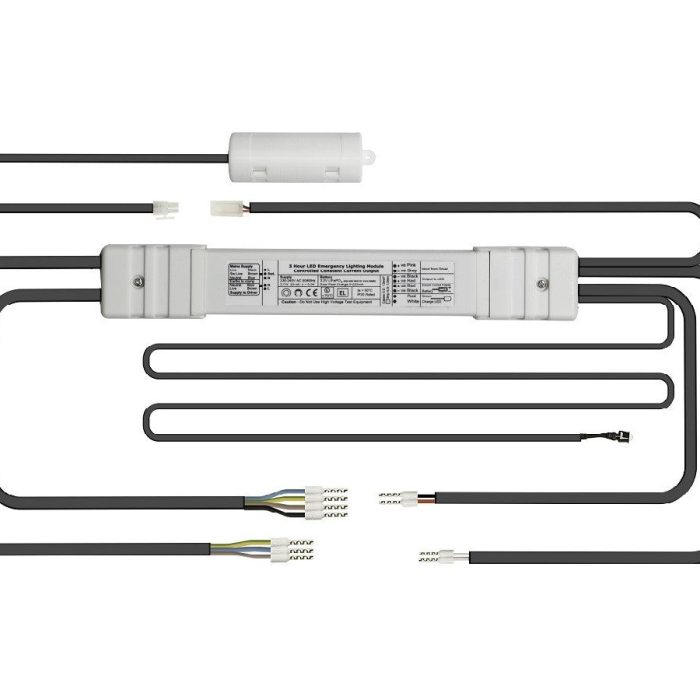

The NLP 1 TP40, is a remote 3-hour switchable emergency lighting module designed to suit a wide range of LED types, circuits and applications. The unit operates with lithium iron phosphate (LiFePO4) batteries and is available in 2 versions, one for SELV applications, less than 60V and one up to 80V. The module automatically adjusts the output current to provide the best match between the battery and the load, providing maximum illumination whilst ensuring full battery duration. The module is supplied with a green charge healthy indicator LED. This range uses the latest LiFePO4 battery technology, dramatically reducing energy consumption and facilities management labour.

The NLP 1 TP40 is supplied with strain relief cables so that it can be installed adjacent to the luminaire in the ceiling void. The product passes through a 40mm, or greater aperture.



Please select variant	NLP/1/TP40, NLP/1/80/TP40, NLP/1S/TP40, NLP/1S/80/TP40
