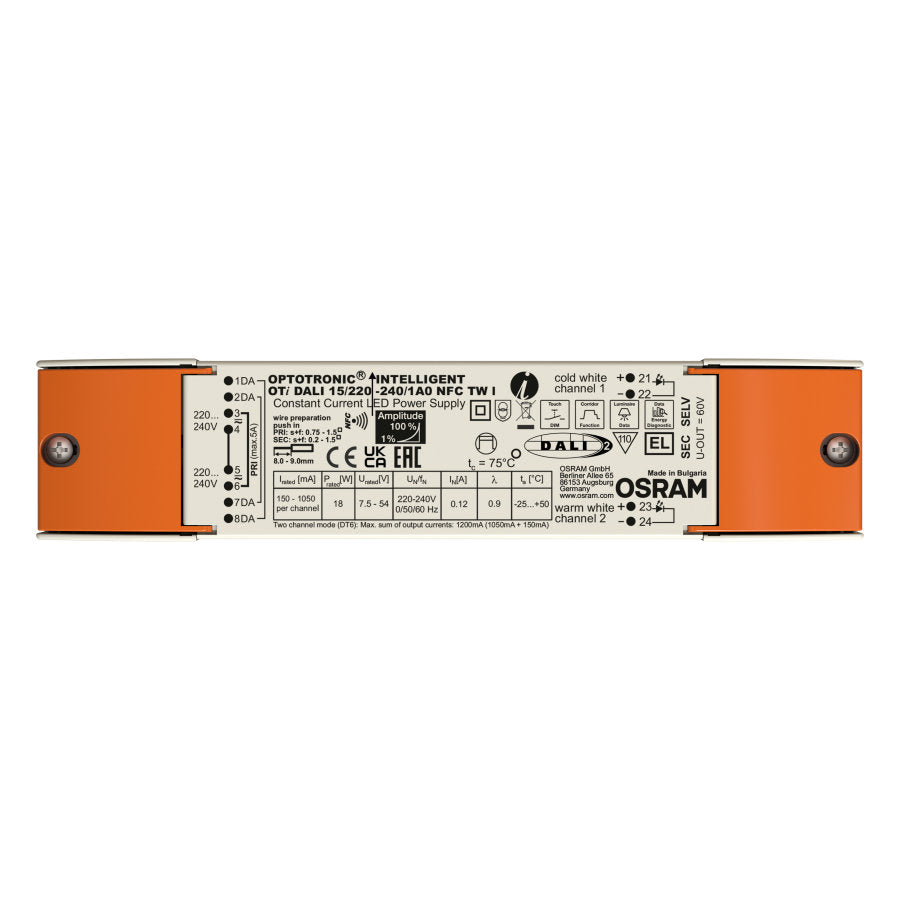

Name: Shop our huge selection of the best 24.89 OTi DALI 15 220...240 1A0 NFC TW I Online
SKU: 90C1BE91BCA6D31D
Price: 24.89 USD
Availability: InStock

Product family benefits

Control of standard white or Tunable White light acc. DALI device type 8 (DT8)

TouchDIM Tunable White integrated for use without additional LMS

Fully programmable via T4T software (NFC, DALI Interface)

Lifetime: up to 100,000 h (temperature at T_{c_{= 65 °C, max. 10 % failure rate)}}

High-quality dimming of 1…100 % by amplitude dimming

High quality of light thanks to <1% output ripple current

Fulfill safety requirement due to overload, overtemperature, Hot Plug protection

Areas of application

Classrooms

Conference rooms

Daylight simulation for windowless rooms

For Tunable White as well as for 2-channel use (e.g. direct indirect lighting)

Healthcare and hospitality with HCL functionality

Independent mounting via Cable Clamp Kit possible

Installation in emergency lighting systems according to IEC 61347-2-13, appendix J

Office with high end HCL functionality

Suitable for indoor and outdoor SELV installations

Technical Data

Electrical data

Nominal input voltage

220…240 V

Mains frequency

0 50 60 Hz

Input voltage AC

198…264 V

Input voltage DC

176…276 V

Total harmonic distortion

< 15 %

Power factor λ

0.47C…0.92C

Efficiency in full-load

85 %

Inrush current

17 A

Max. ECG no. on circuit breaker 10 A (C)

–

Max. ECG no. on circuit breaker 10 A (B)

27

Max. ECG no. on circuit breaker 16 A (C)

–

Max. ECG no. on circuit breaker 16 A (B)

43

Max. ECG no. on circuit breaker 25 A (B)

–

Surge capability (L N-Ground)

2 kV

Surge capability (L-N)

1 kV

Nominal output voltage

7.5…54 V

U-OUT (working voltage)

60 V

Nominal output current

150…1050 mA

Default output current, 2-channel DT6

300 mA

Default output current, TW DT8

300 mA

Output current tolerance

±3 %

Output ripple current (100 Hz)

< 2 %

Output PSTLM

<1

Output SVM

<0.4

Nominal output power

18 W

Maximum output power

18 W

Galvanic isolation DALI output

SELV

Power loss in stand-by mode

<0.2 W

Galvanic isolation primary secondary

SELV

Current set

DALI NFC

Default output current

300 mA

Networked standby power

<0.20 W

Galvanic isolation DALI mains

Basic

Dimensions & weight

Mounting hole spacing, length

167.8 mm

Mounting hole spacing, width

–

Product weight

190.00 g

Cable cross-section, input side

0.75…1.5 mm²

Cable cross-section, output side

0.2…1.5 mm²

Wire preparation length, input side

8.0…9.0 mm

Wire preparation length, output side

8.0…9.0 mm

Width

44.5 mm

Length

203.0 mm

Height

34.0 mm

Colors & materials

Casing material

Plastic

Temperatures & operating conditions

Ambient temperature range

-25…+50 °C

Maximum temperature at tc test point

75 °C

Max.housing temperature in case of fault

110 °C

Temperature range at storage

-40…+85 °C

Permitted rel. humidity during operation

5…85 %

Lifespan

ECG lifetime

50000 100000 h

Additional product data

Encapsulated

No

Capabilities

Dimmable

Yes

Dimming interface

DALI-2 Touch DIM Touch DIM Sensor

Dimming range

1…100 %

Dimming method

Amplitude Modulation

Overheating protection

Automatic reversible

Overload protection

Automatic reversible

Short-circuit protection

Automatic reversible

No-load proof

Yes

Intended for no-load operation

No

Max. cable length to lamp LED module

2.0 m

Suitable for fixtures with prot. class

I II

Type of connection, input side

Push terminal

Type of connection, output side

Push terminal

Detection angle (Light sensor)

–

Suitable for through-wiring

Yes

Suitable for emergency lighting

Yes

DALI-2 Diagnostic Data

Yes

DALI-2 Energy Data

Yes

Control interface

DALI-2

Programming interface

DALI, NFC

Number of channels

2

Detection angle (PIR)

–

Constant lumen function

Programmable

Programming

Programming device

DALI NFC

Tuner4TRONIC

Yes

Box programming

Yes

Tuner4TRONIC Field App

No

Programmable features

Soft Switch Off

Yes

Dim to Dark

Yes

TouchDIM + Sensor

Yes

Emergency Mode

Yes

DALI-2 Luminaire Data

Yes

Configuration Lock

Yes

OEM Key

No

Corridor Functionality

Yes

DALI Settings

Yes

End of Life

–

Driver Guard

Yes

Operating Current

Yes

Constant Lumen

Yes

Lamp Operating Time

Yes

Certificates & standards

Approval marks – approval

CE UKCA EAC DALI-2 EL

Standards

Acc. to IEC 61347-1 Acc. to IEC 61347-2-13 Acc. to IEC 62384 Acc. to EN 55015 Acc. to IEC 62386 Acc. to IEC 61000-3-2 Acc. to IEC 61000-3-3 Acc. to IEC 61547 Acc. to CISPR 15 Acc. to ETSI EN 300 330 Acc. to ETSI EN 301 489 – 1 Acc. to ETSI EN 301 489-3

Protection class

II

Type of protection

IP20

Logistical data

Commodity code

850440839000

Environmental information

Information according Art. 33 of EU Regulation (EC) 1907 2006 (REACh)

Date of Declaration

01-03-2023

Primary Article Identifier

4062172211543

Candidate List Substance 1

Lead

CAS No. of substance 1

7439-92-1

Safe Use Instruction

The identification of the Candidate List substance is sufficient to allow safe use of the article.

Declaration No. in SCIP database

43b862c2-0590-456e-8079-270857ecb7ef

Packaging information

EAN

Unit

Piece

Dimension l x w x h

Weight

Volume

4062172211543
UNV

1
203mm x 45mm x 34mm
190.00g
0.31dm³

4062172211550
VS

20
418mm x 185mm x 108mm
4014.00g
8.35dm³

Downloads

Technický list výrobku

Family data sheet

Data sheet

OPTOTRONIC LED Power Supply

User instruction

Size: 2 MB

OT ENEC 40038447 130722

Certificates

Size: 618.2 kB

OTI DALI 15 25 NFC TW I IGS 040221

CAD data

Size: 2.5 MB

OTI DALI 15 25 NFC TW I STEP 040221

CAD data

Size: 2.1 MB

OTI DALI 15 25 NFC TW I CAD2PDF 040221

CAD Data 2-dim

Size: 133.7 kB

OTI DALI 15 25 NFC TW I CAD3PDF 040221

CAD data 3-dim

Size: 327.7 kB

OTi DALI NFC TW I CE 4335714 161221

Mandatory Publications

Size: 256.5 kB

OTi DALI NFC TW I UK DoC 4335715 161221

Mandatory Publications

Size: 254.3 kB

Accessories optional

PRH101 -USB

4055462165152

CPR30 -USB

4055462165169

Information about Family

Product family features

Line frequency: 0 Hz | 50 Hz | 60 Hz

Supply voltage: 220…240 V

Usable as DT6 (2-channel) or DT8 (Tunable White) driver

Constant Lumen Output (CLO)

Integrated customizable thermal management (Driver Guard)

SELV driver

Ecodesign regulation information:
Intended for use with LED modules.
The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.

Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012 19 EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.

Title
Default Title

Related products

Product on sale

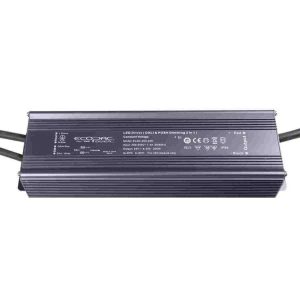

ELED-200-DP2 Series DALI Dimmable Constant Voltage LED Drivers 200W IP66 12v 24v For Discount
0 out of 5
$62
Select options

Product on sale

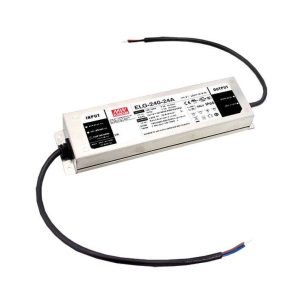

ELG-240-24DA-3Y Series DALI Dimmable Constant Voltage LED Drivers 240W 24V For Discount
0 out of 5
$48.13
Select options

Product on sale

Harvard Venture CL350D2-240-C 17W 350Ma Dali Dimmable Online Sale
0 out of 5
$25.14
Select options

Product on sale

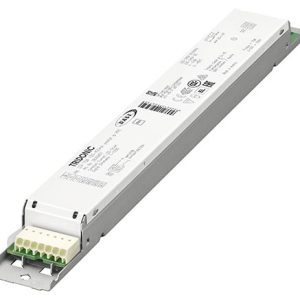

LC 75 250-400 220 o4a lp ADV 87500728 Online now
0 out of 5
$16.92
Select options

Product on sale

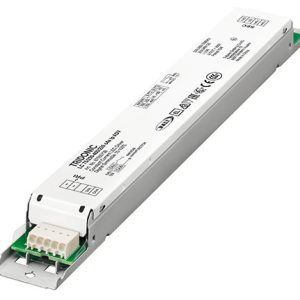

Driver LCA 75W 350–1050mA one4all lp PRE premium series non-SELV 28000659 Online now
