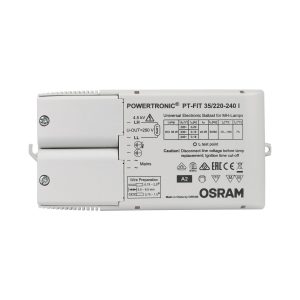

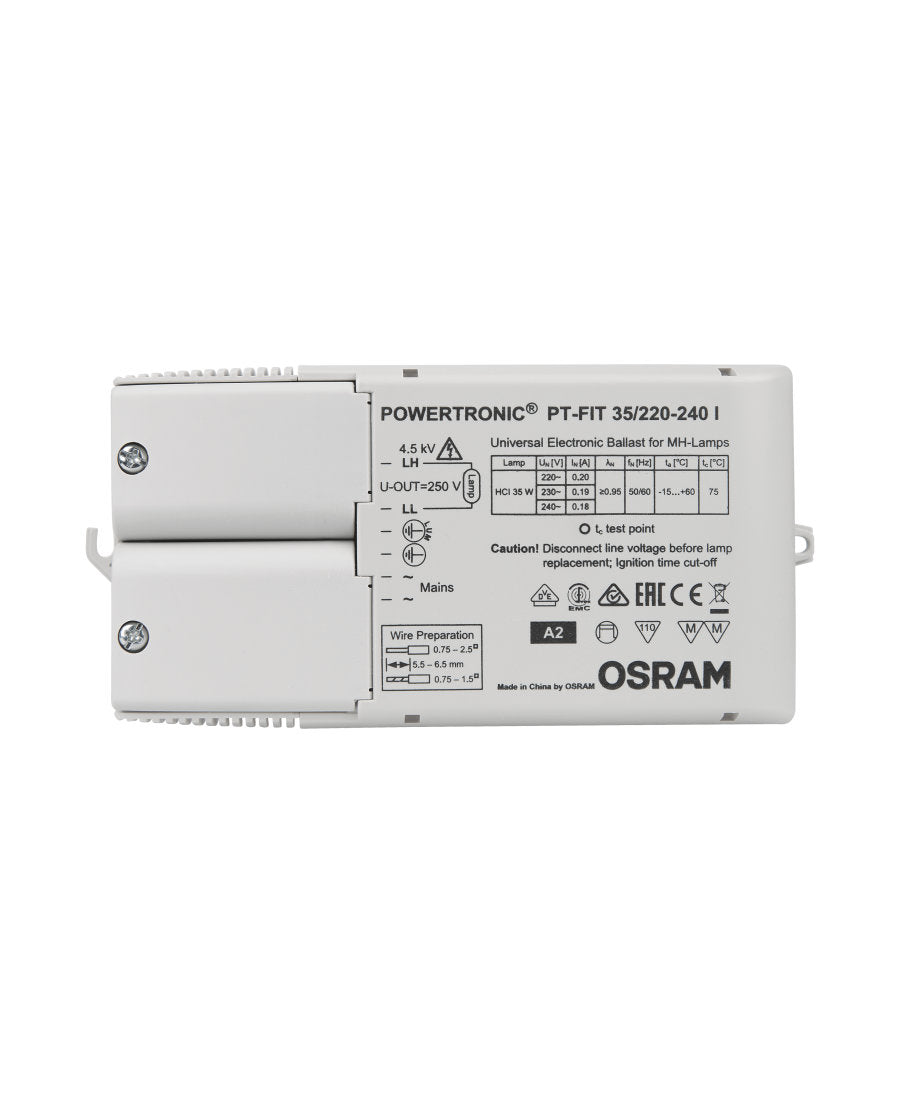

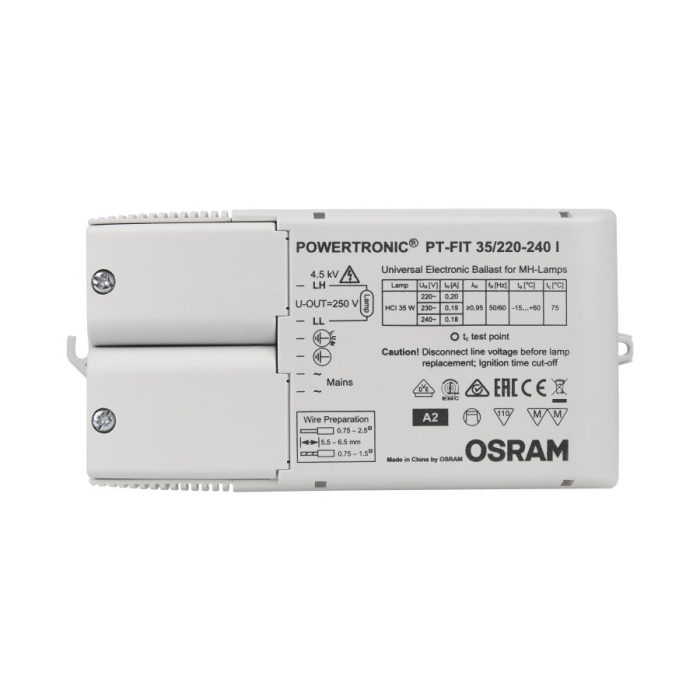

35w Powertronic Ballast – Osram – PTFIT35I

Product family benefits

  • ECG with ergonomic strain relief for correct installation in suspended ceilings
  • Optimized cost benefit factor
  • Automatic safety shutdown of lamps in the event of a defect or at end of life (EoL)
    • Areas of application

      • Shop lighting
      • Health and fitness areas (in luminaires with protection class IP66 or higher)
      • Effect and accent lighting

        • Safety advice
          Ballast losses and lamp heat radiation can lead to heat accumulation in a completely closed case. Therefore it is necessary to ensure that the temperature at the measuring point t of the ECG does not exceed the maximum value.
          Attention!
          For safety reasons disconnect the device before replacing the lamp!



          Technical Data

          Electrical data

          Lamp wattage

          39 W

          Maximum output power

          39 W

          Line current

          0.19 A

          Ignition voltage

          4.5 kVp

          Operating frequency

          0.200…0.240 kHz

          System wattage

          43.00 W

          Efficiency in full-load

          91 %

          Input voltage AC

          198…264 V

          Nominal voltage

          220…240 V

          Mains frequency

          50…60 Hz

          Power factor λ

          0.95

          Inrush current

          30 A

          Max. ECG no. on circuit breaker 10 A (B)

          15

          Max. ECG no. on circuit breaker 16 A (B)

          26

          Max. no. of ECGs on 16A MCB with EBN-OS

          65

          Protective conductor current

          0.3 mA

          U-OUT (working voltage)

          250 V

          Max. working voltage between LH and LL

          250 V

          Max. working voltage betw. LL LH & earth

          250 V

          Max. capacitance of wire ECG lamp

          120 pF

          Dimensions & weight

          Length

          172.0 mm

          Width

          83.0 mm

          Height

          33.0 mm

          Mounting hole spacing, length

          163.0 mm

          Cable cross-section, input side

          0.75…1.5 0.75…2.5 mm²

          Cable cross-section, output side

          0.75…1.5 0.75…2.5 mm²

          Wire preparation length, input side

          5.5…6.5 mm

          Wire preparation length, output side

          5.5…6.5 mm

          Product weight

          285.00 g

          Colors & materials

          Casing material

          Plastic

          Temperatures & operating conditions

          Ambient temperature range

          -15…+60 °C

          Maximum temperature at tc test point

          75 °C

          Lifespan

          ECG lifetime

          30000 h

          Additional product data

          Design version

          With cable clamp

          Suitable for lamp power (1 lamp)

          39 W

          Capabilities

          Max. cable length to lamp LED module

          1.5 m

          Overheating protection

          Power reduction and switch off at T > 75 °C at the tc point

          ECG reset time

          > 0.5 s

          Cable wire types, input side

          NYM-J 3×1.5 NYM-J 3×2.5 H05VV-F 3×1.5 NHXMH-J 3×1.5 mm²

          Cable wire types, output side

          SIHF-J 3×1.5 SIHF-J 3×2.5 SIHSI 3×1.0 mm²

          Dimmable

          No

          Restriction on ignition time

          20 min

          Suitable for fixtures with prot. class

          I

          Intended for no-load operation

          No

          Certificates & standards

          Approval marks – approval

          VDE VDE-EMC EAC C-Tick

          Type of protection

          IP20

          EEI – Energy Label

          A2

          Standards

          Acc. to EN 61347-2-12 Acc. to EN 55015 Acc. to EN 61000-3-2 Acc. to EN 61547 Acc. to EN 62493

          Logistical data

          Commodity code

          850410809000

          Environmental information


          Information according Art. 33 of EU Regulation (EC) 1907 2006 (REACh)

          Date of Declaration

          14-04-2022

          Primary Article Identifier

          4008321377661

          Candidate List Substance 1

          Lead

          CAS No. of substance 1

          7439-92-1

          Safe Use Instruction

          The identification of the Candidate List substance is sufficient to allow safe use of the article.

          Declaration No. in SCIP database

          debdcb03-c15a-4efc-b20c-4d88962b9a80

          Packaging information

          EAN

          Unit

          Piece

          Dimension l x w x h

          Weight

          Volume
          4008321377661

          		 UNV

          		 1

          		 172mm x 83mm x 33mm

          		 285.00g

          		 0.47dm³
          4008321377678

          		 VS

          		 20

          		 437mm x 100mm x 365mm

          		 6130.00g

          		 15.95dm³
