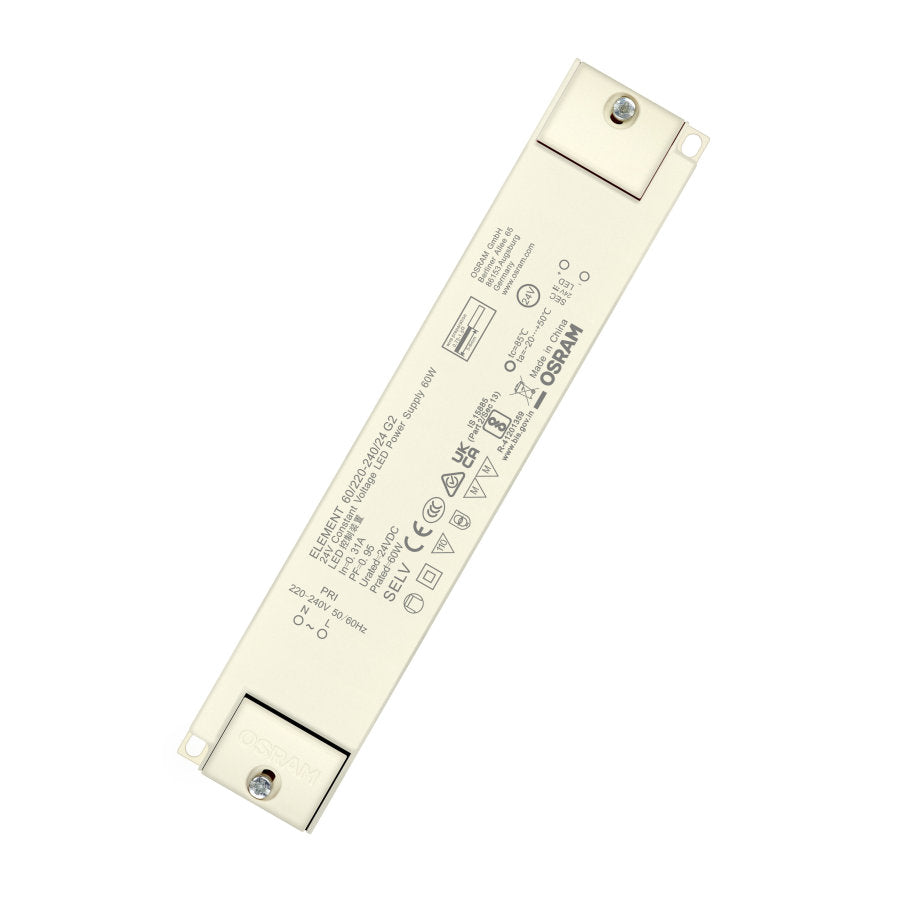

ELEMENT 60 220-240 24 G2 Sale

$9.98

28 people are viewing this right now
16 products sold in last 2 hours
Selling fast! 1 person has this in their cart
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

Technical Data

Electrical data

Nominal input voltage

220…240 V

Mains frequency

50…60 Hz

Input voltage AC

198…264 V

Power factor λ

0.95

Efficiency in full-load

88 %


Device power loss

8.2 W


Inrush current

< 25 A


Max. ECG no. on circuit breaker 10 A (B)

10

Max. ECG no. on circuit breaker 10 A (C)

16

Max. ECG no. on circuit breaker 16 A (B)

15

Max. ECG no. on circuit breaker 16 A (C)

26

Max. ECG no. on circuit breaker 25 A (B)

24

Surge capability (L-N)

1 kV

Nominal output voltage

24 V

Nominal output power

60 W

Maximum output power

60 W


Galvanic isolation primary secondary

3 kV

Output ripple Voltage (100 Hz)

< 3 %

Dimensions & weight

Mounting hole spacing, length

192 mm

Product weight

296.00 g

Cable cross-section, input side

0.75…1.5 mm²

Cable cross-section, output side

0.75…1.5 mm²

Wire preparation length, input side

5.0 mm

Width

40.0 mm

Height

31.0 mm

Length

200.0 mm

Colors & materials

Casing material

Plastic

Temperatures & operating conditions

Ambient temperature range

-20…+50 °C

Maximum temperature at tc test point

85 °C

Max.housing temperature in case of fault

110 °C

Temperature range at storage

-40…+85 °C

Permitted rel. humidity during operation

5…85 %


Lifespan

ECG lifetime

30000 h


Additional product data

Predecessor EAN

4052899528680, 4052899463790

Capabilities

Dimmable

No

Overheating protection

Yes

Overload protection

Yes

Short-circuit protection

Yes

Intended for no-load operation

No

Suitable for fixtures with prot. class

I II

Number of channels

1

Certificates & standards

Approval marks – approval

CE RCM CCC MM

Standards

Acc. to IEC 61347-1 Acc. to IEC 61347-2-13 Acc. to IEC 62384 Acc. to IEC 61000-3-2 Acc. to CISPR 15 Acc. to IEC 61000-3-3 Acc. to IEC 61547

Type of protection

IP20

Logistical data

Commodity code

850440839000

Environmental information


Information according Art. 33 of EU Regulation (EC) 1907 2006 (REACh)

Date of Declaration

19-10-2022

Primary Article Identifier

4052899605527

Candidate List Substance 1

Lead

CAS No. of substance 1

7439-92-1

Safe Use Instruction

The identification of the Candidate List substance is sufficient to allow safe use of the article.

Declaration No. in SCIP database

9094d77e-5439-4549-8aef-7667bfd9f7fe

Packaging information

EAN

Unit

Piece

Dimension l x w x h

Weight

Volume
4052899605527

 UNV


 1

 200mm x 40mm x 31mm

 296.00g

 0.25dm³
4052899605534

 VS


 30

 421mm x 225mm x 141mm

 9493.00g

 13.36dm³
