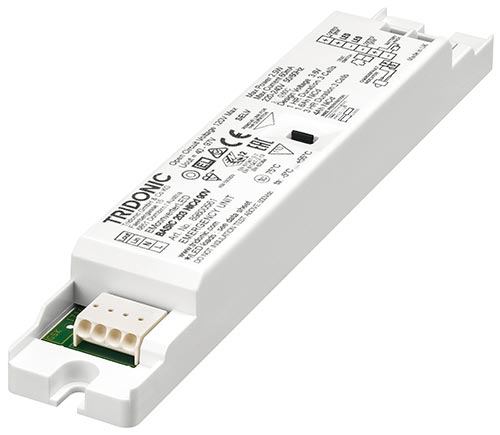

Product description

• Emergency lighting LED Driver for manual testing
• For self-contained emergency lighting
• For LED modules with a forward voltage of 10 – 54 V
• SELV for output voltage < 60 V DC
• Low profile casing (21 x 30 mm cross-section)
• For luminaire installation
• Nominal lifetime up to 100,000 h
• 5-year guarantee

• Properties

  • Non maintained operation
  • 1 or 3 h rated duration
  • Operating time selectable with plug (duration link)
  • Compatible with all dimmable and non-dimmable constant current LED Driver (see data sheet, LED Driver compatibility)
  • 3-pole technology: 2-pole LED module changeover and delayed power switching for the LED Driver
  • Automatic shutdown of output if LED load is out of range
  • Constant power output
  • Maximum light output for all LED modules
  • Electronic charge system
  • Deep discharge protection
  • Short-circuit-proof battery connection
  • Polarity reversal protection for battery

  • Batteries

    • High-temperature cells
    • NiCd or NiMH batteries
    • D, Cs or LA cells
    • 4 year design life
    • 1-year guarantee
    • For battery compatibility refer to data sheet
    • Ordering data Type 2 Article number Rated duration Number of cells Packaging, carton Packaging, pallet Weight per pc. Dimensions L x W x H EM converterLED BASIC 203 NiCd NiMH 50V 89800559 1 3 h 3 10 pc(s). 1,600 pc(s). 0.065 kg 179 x 30 x 21 mm Technical data Rated supply voltage 220 – 240 V AC voltage range 198 – 264 V Mains frequency 50 60 Hz Typ. λ (at 230 V, 50 Hz) 0.6C Forward voltage range LED module 10 – 54 V Output current See data sheet Starting time < 0.25 s from detection of emergency event Overvoltage protection 320 V (for 48 h) U-OUT (including open- short-circuit and double load) 60 V Max. open circuit voltage 60 V Battery charging time 1 24 h Ambient temperature ta -5 … +55 °C Max. casing temperature tc 75 °C Mains voltage changeover threshold According to EN 60598-2-22 Mains surge capability (between L – N) 1 kV Mains surge capability (between L N – PE) 2 kV Type of protection IP20 Lifetime up to 100,000 h Dimensions L x W x H 179 x 30 x 21 mm
